399-11-106-10-003000

Active

Mill-Max Manufacturing Corp.

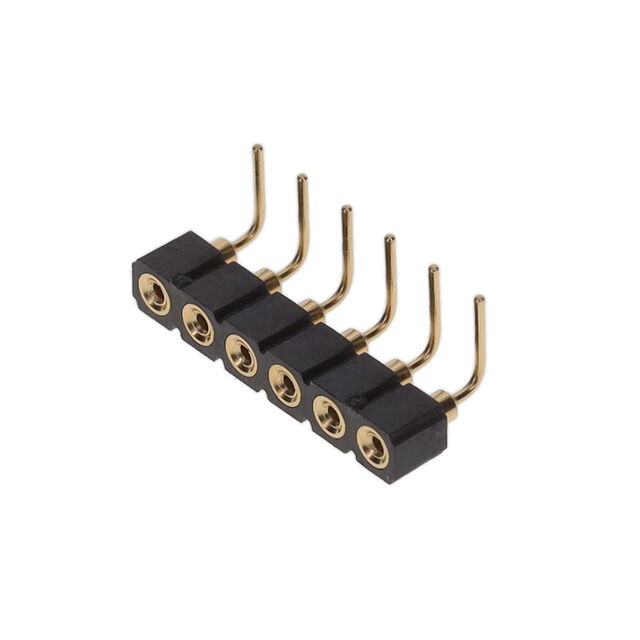

CONN RCPT 6POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

399-11-106-10-003000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 6POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	399-11-106-10-003000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

399-11 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Type	Contact Shape	Termination	Contact Finish - Post	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Mounting Type	Material Flammability Rating
Mill-Max Manufacturing Corp. 399-11-135-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	35	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-143-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	43	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-125-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A		Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-144-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	44	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-106-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	6	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-101-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in			Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	1	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-159-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	59	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-132-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A		Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-146-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	46	Through Hole Right Angle	UL94 V-0
Mill-Max Manufacturing Corp. 399-11-109-10-003000	10 çin	0.25 çm	10 çin	0.25 çm	All	Female Socket	Circular	Solder	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	Black	Receptacle	1	-55 °C	125 °C	0.1 in	2.54 mm	Gold	3 A	9	Through Hole Right Angle	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.64
		10	$ 14.42
		34	$ 13.66
		68	$ 13.47
		102	$ 11.88
		272	$ 11.09
		510	$ 10.85

Description

General part information

399-11 Series

6 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
