8795 6061000

Active

Belden Inc.

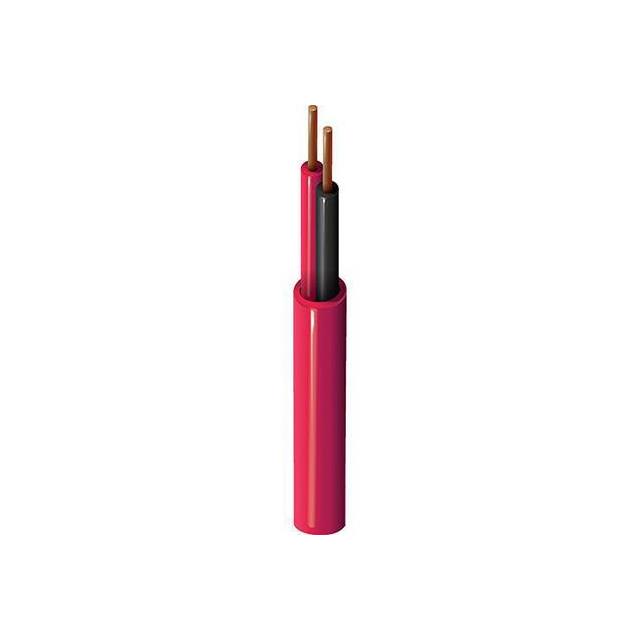

CABLE 2COND 22AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	8795 6061000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.022 in
Jacket (Insulation) Thickness	0.559 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Voltage	Conductor Strand	Conductor Insulation	Cable Type	Number of Conductors
Belden Inc. 8795 6061000	Audio Control Instrumentation	-30 ░C	60 °C	22 AWG	Poly-Vinyl Chloride (PVC)	0.022 in	0.559 mm	Red	1000 ft	304.8 m	4.27 mm	0.168 in	Copper Bare	300 V	Solid	Polyethylene (PE)	Multi-Conductor	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.37

General part information

2 Conductor Multi-Conductor Cable Red 22 AWG 1000.0' (304.8m)
