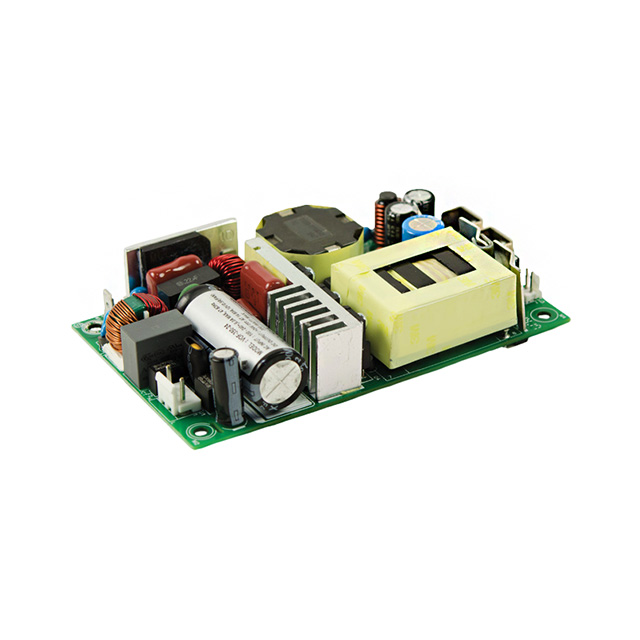

VOF-350-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 200W

VOF-350-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 200W

Description Specifications Series Pricing CAD Documents

Description

General part information

VOF-350 Series

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-350-48

Applications	ITE (Commercial)
Approval Agency	EN, IEC, SIQ, UL, FCC, TUV, CB Scheme
Current - Output 1	4.17 A
Efficiency	94 %
Features	Adjustable Output, Standby Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	200 W, 350 W
Size / Dimension Height	1 in
Size / Dimension Length	5 in
Size / Dimension Width	3 in
Standard Number	60950-1, 55032 Class B, 61000-3-2, 61000-3-3, 55024
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	3 kV
Voltage - Output 1	48 V

VOF-350 Series

Part	Current - Output 1	Standard Number	Approval Agency	Voltage - Isolation	Type	Applications	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Number of Outputs	Mounting Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Voltage - Output 1	Features	Efficiency
CUI Inc. VOF-350-58-1	6.04 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	58 V	Adjustable Output PFC Standby Output Universal Input	94 %
CUI Inc. VOF-350-15-1	12 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	180 W 270 W	15 V	Adjustable Output PFC Standby Output Universal Input	92 %
CUI Inc. VOF-350-58	6.04 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	58 V	Adjustable Output PFC Standby Output Universal Input	94 %
CUI Inc. VOF-350-48	4.17 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	48 V	Adjustable Output Standby Output Universal Input	94 %
CUI Inc. VOF-350-48-1	4.17 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	48 V	Adjustable Output PFC Standby Output Universal Input	94 %
CUI Inc. VOF-350-12-1	15 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	180 W 225 W	12 V	Adjustable Output PFC Standby Output Universal Input	92 %
CUI Inc. VOF-350-24	8.33 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	24 V	Adjustable Output Standby Output Universal Input	93 %
CUI Inc. VOF-350-24-1	8.33 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	24 V	Adjustable Output PFC Standby Output Universal Input	93 %
CUI Inc. VOF-350-30-1	6.67 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3 kV	Open Frame	ITE (Commercial)	5 in	1 in	3 in	1	Chassis Mount	90 V	264 V	70 °C	-40 °C	200 W 350 W	30 V	Adjustable Output PFC Standby Output Universal Input	93 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
