396-019-541-104
ActiveEDAC Inc.

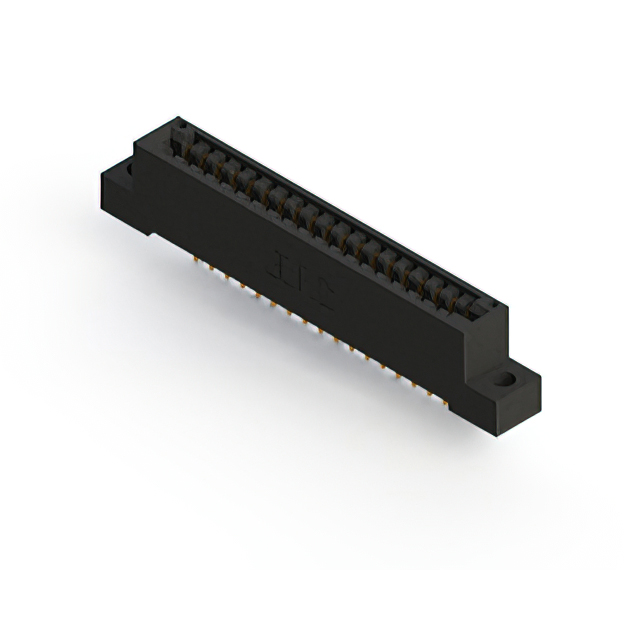

CONN EDGE SGL FMALE 19POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-019-541-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-019-541-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
396-019 Series
| Part | Mounting Type | Termination Rows | Contact Finish | Number of Rows | Gender | Card Type | Color | Flange Feature | Pitch [x] | Pitch [x] | Number of Positions | Material - Insulation | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Material | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | Flush Mount Side Opening Unthreaded | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | |
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | Flush Mount M3 Threaded Insert Top Opening | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | ||
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | Floating Bobbin Flush Mount | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | |
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | Flush Mount Top Opening Unthreaded | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | |
EDAC Inc. | Through Hole | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | ||
EDAC Inc. | Through Hole Right Angle | 1 | Gold | 1 | Female | Non Specified - Single Edge | Black | M3 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 19 | Polyester Thermoplastic | Cantilever | 10 Áin | 0.25 Ám | Single | Copper Alloy | 19 | -40 °C | 105 ░C | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.53 | |
Description
General part information
396-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
