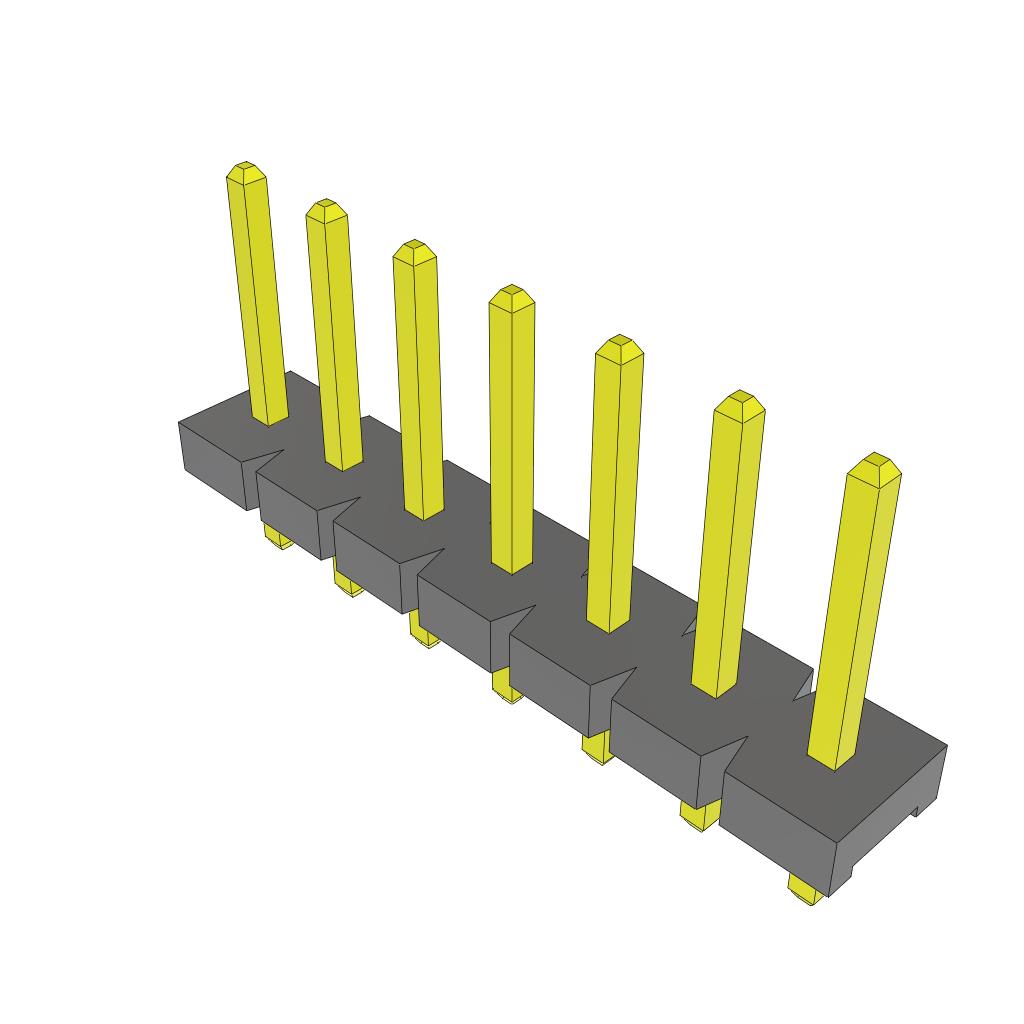

FWS-07-01-T-S - FWS-07-01-T-S

FWS-07-01-T-S

Active
Samtec Inc.

CONN HEADER VERT 7POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFWS Datasheet.200" Power Board Stacker+1
FWS-07-01-T-S - FWS-07-01-T-S

FWS-07-01-T-S

Active
Samtec Inc.

CONN HEADER VERT 7POS 5.08MM

Deep-Dive with AI

DocumentsFWS Datasheet.200" Power Board Stacker+1

Technical Specifications

Parameters and characteristics for this part

SpecificationFWS-07-01-T-S
Connector TypeHeader
Contact Finish - PostTin
Contact Length - Mating0.47 in
Contact Length - Mating11.94 mm
Contact Length - Post0.18 in
Contact Length - Post4.57 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)11.4 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation Height2.54 mm
Insulation MaterialPolyester, Glass Filled
Mounting TypeThrough Hole
Number of Positions7
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Overall Contact Length0.75 in
Overall Contact Length19.05 mm
Pitch - Mating5.08 mm
Pitch - Mating0.2 in
ShroudingUnshrouded
TerminationSolder
Voltage Rating500 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.58

Description

General part information

FWS-07 Series

Connector Header Through Hole 7 position 0.200" (5.08mm)
