ADBJ20-E2-PL75

Active

Cinch Connectivity Solutions Trompeter

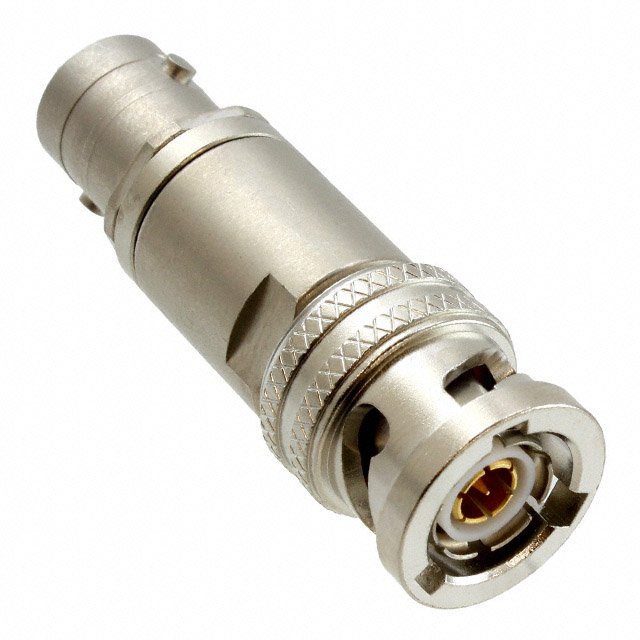

CONN ADAPT BNC JACK TO TRB PLUG

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC JACK TO TRB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ADBJ20-E2-PL75

Adapter Series	BNC to TRB Twinaxial/Triaxial
Adapter Type	Plug to Jack
Body Finish	Nickel
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Fastening Type	Bayonet Lock
Features	Three Lug
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT BNC JACK TO TRB PLUG

Part	Body Finish	Mounting Type	Adapter Type	Features	Conversion Type	Adapter Series	Impedance	Style	Fastening Type	Convert From (Adapter End)
Cinch Connectivity Solutions Trompeter ADBJ20-E2-PL75	Nickel	Free Hanging (In-Line)	Plug to Jack	Three Lug	Between Series	BNC to TRB Twinaxial/Triaxial	50 Ohms	Straight	Bayonet Lock	BNC Jack, Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To TRB Twinaxial/Triaxial Plug, Male Pin 50 Ohms
