EM4702-12-2#

Active

Pomona Electronics

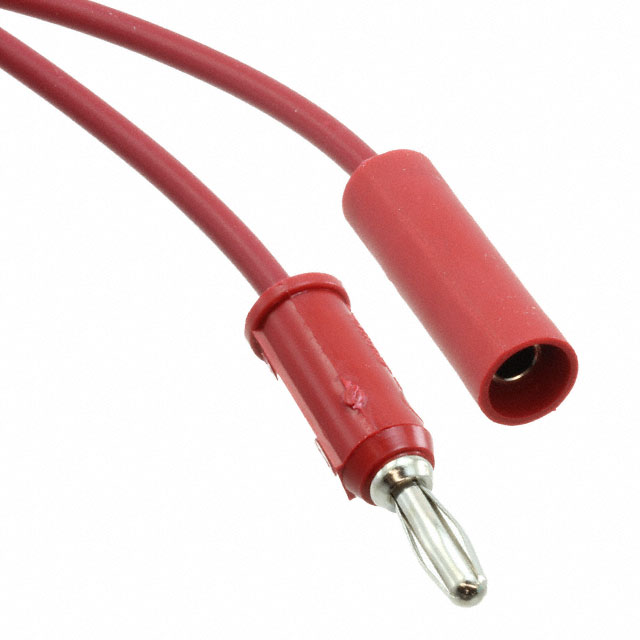

TEST LEADS BANANA PLUG/BANANA JACK (RED)

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEADS BANANA PLUG/BANANA JACK (RED)

Technical Specifications

Parameters and characteristics for this part

Specification	EM4702-12-2#

1st Connector	Banana Plug, Single
2nd Connector	Banana Socket (Jack), Single, Sheathed
Cable Length	12 in
Cable Length	304.8 mm
Configuration	Banana to Banana
Contents	Red
Contents [custom]	1
Current Rating (Amps)	15 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

Part	Cable Length	Cable Length	Stacking Method	Type	Wire Gauge	2nd Connector	1st Connector	Contents [custom]	Contents	Current Rating (Amps)	Configuration	Voltage - Rated	Voltage - Rated	Material - Insulation
Pomona Electronics EM4702-12-2#	12 in	304.8 mm	Non Stackable	Patch Cord	18 AWG	Banana Socket (Jack) Single Sheathed	Banana Plug Single	1	Red	15 A	Banana to Banana	5 kV	5 kV	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Banana Plug, Single To Banana Socket (Jack), Single, Sheathed Patch Cord 5000VDC (5kV)
