UNC 1 3/4-5-5-BLUE/WHITE

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 5"L X 5"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 5"L X 5"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

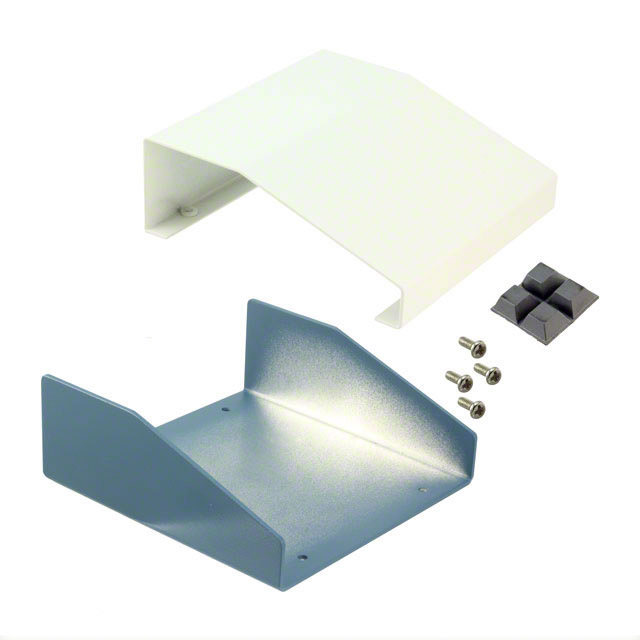

Cabinet Metal, Aluminum Blue, White Slanted Top 5.000" L x 5.000" W (127.00mm x 127.00mm) X 1.750" (44.45mm)

Technical documentation and resources

Specification	UNC 1 3/4-5-5-BLUE/WHITE	UNC 1 Series

Color	Blue, White	Unpainted, Blue, White
Container Type	Cabinet	Cabinet
Design	Slanted Top	Slanted Top
Features	Separate Panel or Cover Thickness	Separate Panel or Cover Thickness
Height [z]	44.45 mm	44.45 mm
Height [z]	1.75 in	1.75 in
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [y]	5 in	5 in
Thickness	0.09 in	0.09 in
Thickness	2.29 mm	2.29 mm

Part	Container Type	Thickness	Thickness	Height [z]	Height [z]	Features	Material	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Design
LMB Heeger Inc. UNC 1 3/4-5-5 PLAIN	Cabinet	0.09 in	2.29 mm	44.45 mm	1.75 in	Separate Panel or Cover Thickness	Aluminum, Metal	Unpainted	127 mm	127 mm	5 in	5 in	Slanted Top
LMB Heeger Inc. UNC 1 3/4-5-5-BLUE/WHITE	Cabinet	0.09 in	2.29 mm	44.45 mm	1.75 in	Separate Panel or Cover Thickness	Aluminum, Metal	Blue, White	127 mm	127 mm	5 in	5 in	Slanted Top
