KAP1112E

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAP1112E

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	1.261 in
Length	32.03 mm
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Number of Positions	Washable	Length	Length	Voltage Rating	Electrical Life	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Contact Material	Termination Style	Actuator Type	Mechanical Life	Contact Finish	Mounting Type	Body Material	Circuit	Height Above Board	Height Above Board
E-Switch KAP1112E	12		1.261 in	32.03 mm	24 VDC	2000 Steps	25 mA	0.1 in	Full	2.54 mm	85 °C	-40 °C	Raised	Phosphor Bronze	PC Pin	Piano	2000 Cycles	Gold	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	SPST	10.2 mm	0.402 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 1.58

General part information

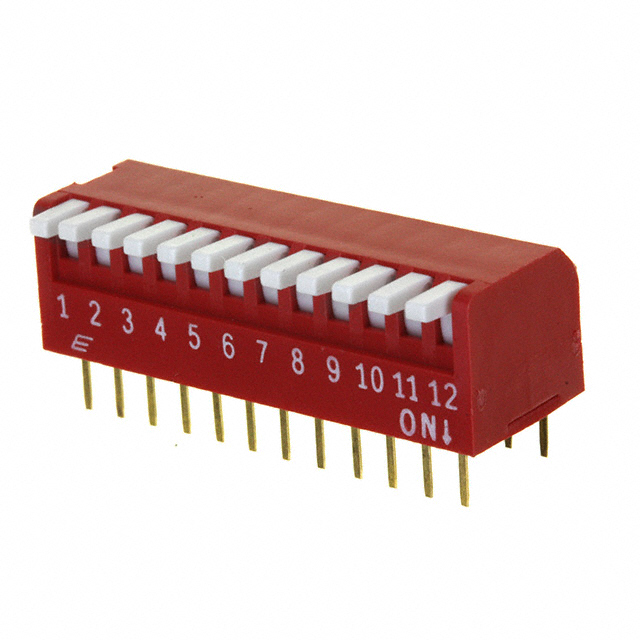

Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
