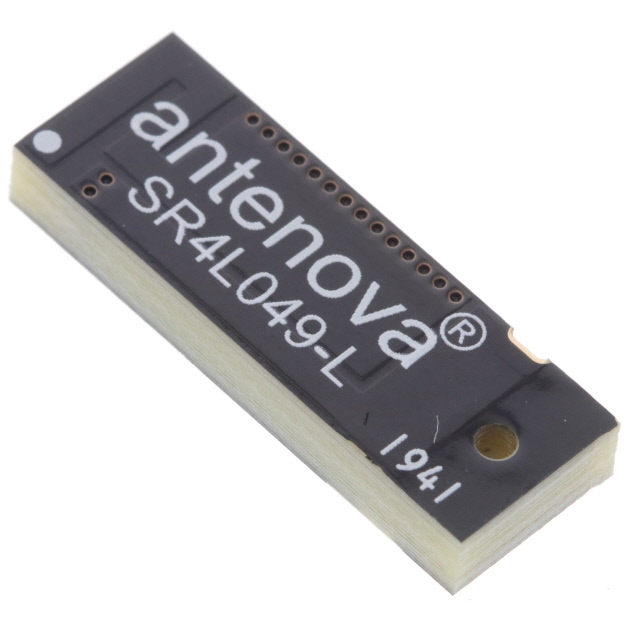

SR4L049-L

Active

Antenova

RF ANT 875.5MHZ/1.94GHZ PCB TRCE

Search across all available documentation for this part.

Active

Antenova

RF ANT 875.5MHZ/1.94GHZ PCB TRCE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR4L049-L	SR4L049 Series

Antenna Type	PCB Trace	PCB Trace
Applications	4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA	4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA
For Use With/Related Products	-	SR4L049
Frequency	-	2.17 - 960 GHz
Frequency	-	1.71 - 791 GHz
Frequency (Center/Band)	2.595 GHz, 875.5 MHz, 1.94 GHz, 2.35 GHz	1.94 - 875.5 GHz
Frequency Group	Wide Band	Wide Band
Gain	3.5 dBi, 3.3 dBi, 3 dBi, 1.9 dBi	1.9 - 3.5 dBi
Height (Max)	3.3 mm	3.3 mm
Height (Max) [Max] [z]	0.13 in	0.13 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	4	4
Return Loss	-5 dB, -9.7 dB, -4.5 dB, -7.8 dB	-9.7 - -4.5 dB
RF Family/Standard	Cellular	Cellular
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	3.6, 2.3, 4.1, 1.9	1.9 - 4.1

INTEGRA LEFT EVALUATION BOARD

Part	For Use With/Related Products	Type	Frequency [Max]	Frequency [Min]	Supplied Contents	Applications	Mounting Type	RF Family/Standard	VSWR	Termination	Height (Max) [Max] [z]	Height (Max)	Gain	Return Loss	Antenna Type	Number of Bands	Frequency (Center/Band)	Frequency Group
Antenova SR4L049-EVB-1	SR4L049	Antenna	2.17 GHz, 2.4 GHz, 2.7 GHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 791 MHz	Board(s)
Antenova SR4L049-R						3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA	Surface Mount	Cellular	1.9, 2.3, 3.6, 4.1	Solder	0.13 in	3.3 mm	1.9 dBi, 3 dBi, 3.3 dBi, 3.5 dBi	-9.7 dB, -7.8 dB, -5 dB, -4.5 dB	PCB Trace	4	1.94 GHz, 2.35 GHz, 2.595 GHz, 875.5 MHz	Wide Band
Antenova SR4L049-L						3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA	Surface Mount	Cellular	1.9, 2.3, 3.6, 4.1	Solder	0.13 in	3.3 mm	1.9 dBi, 3 dBi, 3.3 dBi, 3.5 dBi	-9.7 dB, -7.8 dB, -5 dB, -4.5 dB	PCB Trace	4	1.94 GHz, 2.35 GHz, 2.595 GHz, 875.5 MHz	Wide Band

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA PCB Trace Solder Surface Mount
