210-47-308-41-001000

Active

Mill-Max Manufacturing Corp.

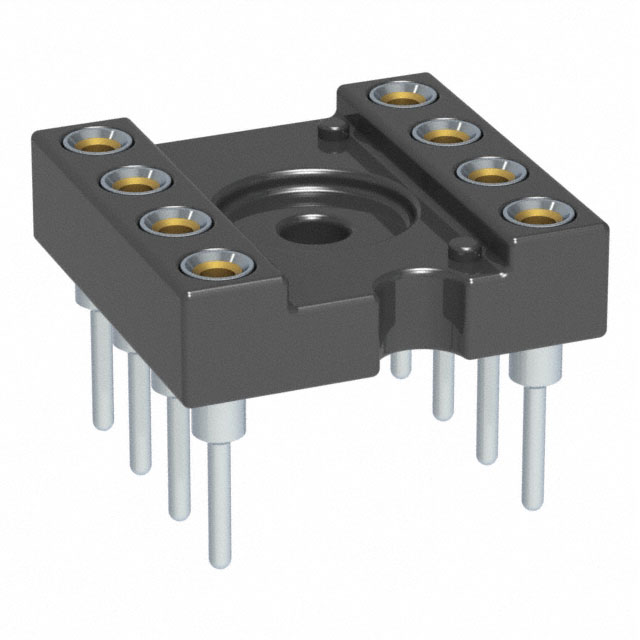

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

210-47-308-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	210-47-308-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

210-47 Series

Part	Contact Material - Post	Mounting Type	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Material - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Post	Pitch - Post	Contact Finish - Post	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Type	Type	Type	Material Flammability Rating	Contact Resistance	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 210-47-640-41-001000	Brass Alloy	Surface Mount	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	40	20	2	2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm
Mill-Max Manufacturing Corp. 210-47-308-41-001000	Brass Alloy	Surface Mount	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	8			2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm
Mill-Max Manufacturing Corp. 210-47-424-41-001000	Brass Alloy	Through Hole	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	24			2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.4 in	10.16 mm	UL94 V-0	10 mOhm
Mill-Max Manufacturing Corp. 210-47-306-41-001000	Brass Alloy	Through Hole	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper		3	2	2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	UL94 V-0	10 mOhm	6
Mill-Max Manufacturing Corp. 210-47-316-41-001000	Brass Alloy	Through Hole	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	16			2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm
Mill-Max Manufacturing Corp. 210-47-322-41-001000	Brass Alloy	Through Hole	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	22			2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	UL94 V-0	10 mOhm
Mill-Max Manufacturing Corp. 210-47-632-41-001000	Brass Alloy	Surface Mount	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper				2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm				2 x 16	32
Mill-Max Manufacturing Corp. 210-47-310-41-001000	Brass Alloy	Through Hole	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper				2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	UL94 V-0	10 mOhm		2 x 5		10
Mill-Max Manufacturing Corp. 210-47-624-41-001000	Brass Alloy	Surface Mount	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	24			2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm
Mill-Max Manufacturing Corp. 210-47-636-41-001000	Brass Alloy	Through Hole	3 A	3.18 mm	0.125 in	Flash	Solder	200 µin	5.08 µm	Closed Frame	Beryllium Copper	36			2.54 mm	0.1 in	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	Gold	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	UL94 V-0	10 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.76
		10	$ 0.64
		25	$ 0.62
		50	$ 0.60
		100	$ 0.58
		250	$ 0.53
		500	$ 0.47
		1000	$ 0.42
		2500	$ 0.38

Description

General part information

210-47 Series

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount
