S03-07-R-100HN

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLV WIRE-WIRE 0.105/0.145"

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLV WIRE-WIRE 0.105/0.145"

Technical Specifications

Parameters and characteristics for this part

Specification	S03-07-R-100HN

Color	Transparent - Blue
Diameter [diameter]	0.145 in, 0.105 "
Diameter [diameter]	3.68 mm, 2.67 mm
Features	Environment Resistant, Pre-Installed Braid
Length	16.51 mm
Length	0.65 "
Type	Wire to Wire

SLDR SLV WIRE-WIRE 0.105/0.145"

Part	Diameter [diameter]	Diameter [diameter]	Length	Length	Color	Type	Features
TE Connectivity Aerospace, Defense and Marine S03-07-R-100HN	0.105 ", 0.145 in	2.67 mm, 3.68 mm	16.51 mm	0.65 "	Transparent - Blue	Wire to Wire	Environment Resistant, Pre-Installed Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

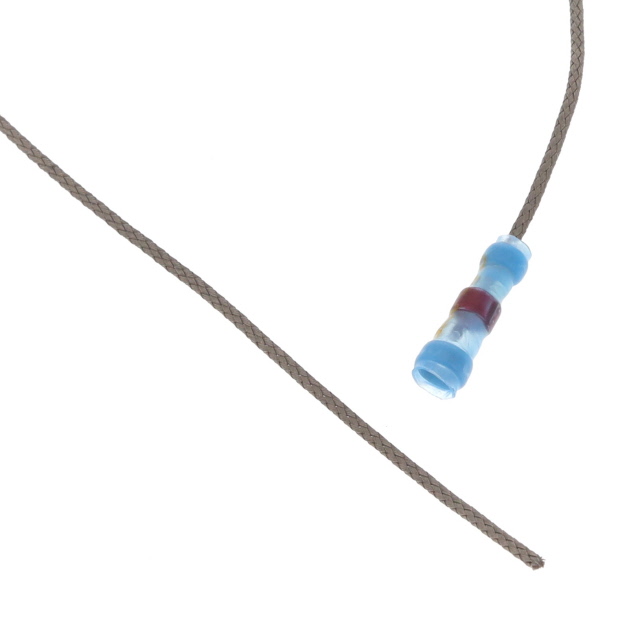

Wire to Wire Solder Sleeve Transparent - Blue 0.105" (2.67mm), 0.145" (3.68mm)

Technical documentation and resources
