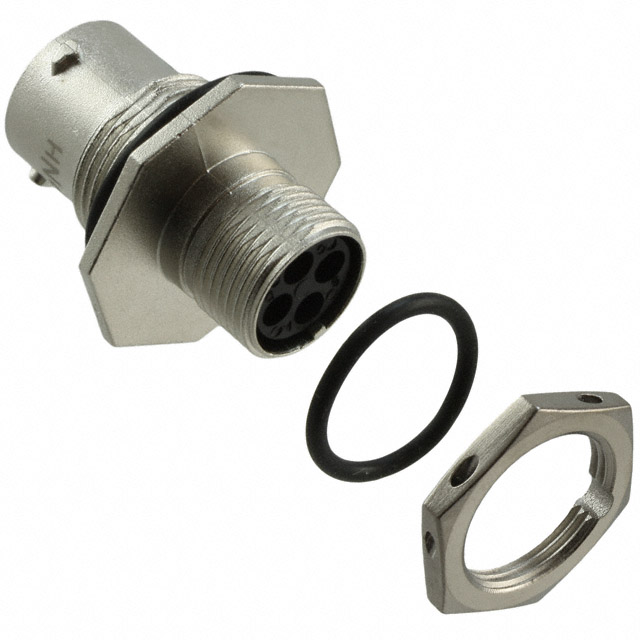

RT07104PNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 4POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 4POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	RT07104PNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-4
Shielding	Shielded
Type	For Male Pins

Part	Mounting Feature	Ingress Protection	Contact Size	Shielding	Fastening Type	Contact Shape	Shell Finish	Material Flammability Rating	Number of Positions	Insert Material	Note	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Material	Connector Type	Shell Size - Insert	Housing Color	Type	Includes	Features	Primary Material
Amphenol Sine Systems Corp RT07104PNH	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	16	Shielded	Bayonet Lock	Circular	Nickel	UL94 V-0	4	Thermoplastic	Contacts Not Included	Crimp	-40 °C	105 ░C	N	Zinc Alloy	Receptacle Housing	10-4	Silver	For Male Pins
Amphenol Sine Systems Corp RT07104SNH03	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	16	Shielded	Bayonet Lock	Circular	Nickel	UL94 V-0	4	Thermoplastic	Contacts Not Included	Crimp	-40 °C	125 °C	N	Zinc Alloy	Receptacle Housing	10-4	Silver	For Female Sockets	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT07104SNHEC	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	16	Shielded	Bayonet Lock	Circular	Nickel	UL94 V-0	4	Thermoplastic	Contacts Not Included	Crimp	-40 °C	105 ░C	N	Zinc Alloy	Receptacle Housing	10-4	Silver	For Female Sockets	1 Connector 1 Nut 1 O-Ring	Backshell
Amphenol Sine Systems Corp RT07104PNHEC03	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	16	Shielded	Bayonet Lock	Circular	Nickel	UL94 V-0	4	Thermoplastic	Contacts Not Included	Crimp	-40 °C	125 °C	N	Zinc Alloy	Receptacle Housing	10-4	Silver	For Male Pins		Cap (Cover)	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.26

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
