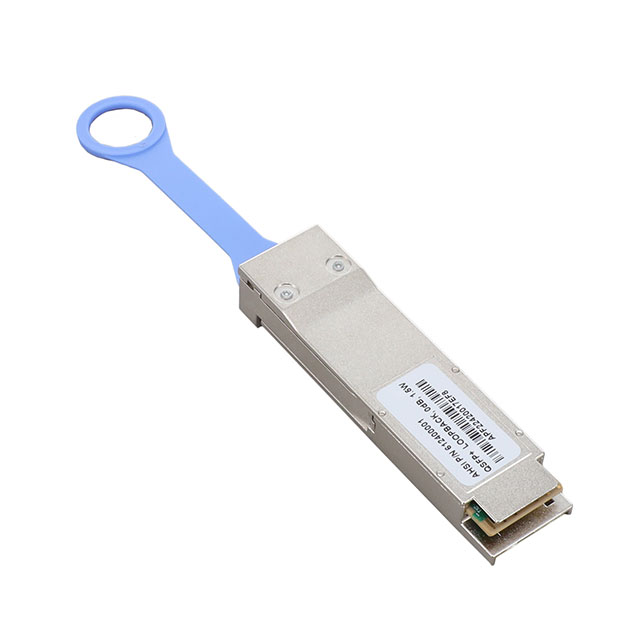

SF-QSFPLOOPBK-001
ActiveAMPHENOL CABLES ON DEMAND
QSFP+ LOOPBACK 1.5W, 0DB ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF-QSFPLOOPBK-001
ActiveAMPHENOL CABLES ON DEMAND
QSFP+ LOOPBACK 1.5W, 0DB ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SF-QSFPLOOPBK-001 | SF-QSFP Series |
|---|---|---|
| Accessory Type | Loopback, Adapter | Loopback, Adapter |
| Cable Connectors | - | QSFP+, SFP+ (4) |
| Cable Type | - | Round |
| Color | - | Black |
| Connector Type | - | Plug to Plug |
| Connector Type | - | 4 |
| Fastening Type | - | Push-Pull, Latch Lock |
| Features | - | Pull Tab |
| For Use With/Related Products | QSFP Connectors | QSFP Connectors |
| Frequency - Max | - | 10 - 40 Gbps |
| Gender | - | Male to Male |
| Length | - | 3.28 - 9.84 ft |
| Length | - | 1 - 3 m |
| Number of Positions | - | 38 |
| Number of Positions | - | 20 (4), 38 |
| Shielding | - | Shielded |
| Usage | - | Network |
| Wire Gauge | - | 30 AWG |
SF-QSFP Series
I/O CONNECTOR, PLUG, QSFP+, CABLE MOUNT
| Part | Accessory Type | For Use With/Related Products | Cable Connectors | Length [x] | Length [x] | Features | Wire Gauge | Shielding | Color | Number of Positions | Cable Type | Connector Type | Frequency - Max [Max] | Gender | Fastening Type | Usage | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL CABLES ON DEMAND SF-QSFPLOOPBK-003 | Adapter, Loopback | QSFP Connectors | ||||||||||||||||
AMPHENOL CABLES ON DEMAND SF-QSFPLOOPBK-001 | Adapter, Loopback | QSFP Connectors | ||||||||||||||||
AMPHENOL CABLES ON DEMAND SF-QSFPPEXPAS-003 | QSFP+ | 9.84 ft | 3 m | Pull Tab | 30 AWG | Shielded | Black | 38 | Round | Plug to Plug | 40 Gbps | Male to Male | Latch Lock, Push-Pull | Network | ||||
AMPHENOL CABLES ON DEMAND SF-QSFP4SFPPS-001 | QSFP+, SFP+ (4) | 3.28 ft | 1 m | Pull Tab | 30 AWG | Shielded | Black | Round | Plug to Plug | 10 Gbps, 40 Gbps | Male to Male | Latch Lock, Push-Pull | Network | 4 | 20 (4), 38 | |||
AMPHENOL CABLES ON DEMAND SF-QSFPLOOPBK-002 | Adapter, Loopback | QSFP Connectors |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SF-QSFP Series
Connector Adapter, Loopback For QSFP Connectors
