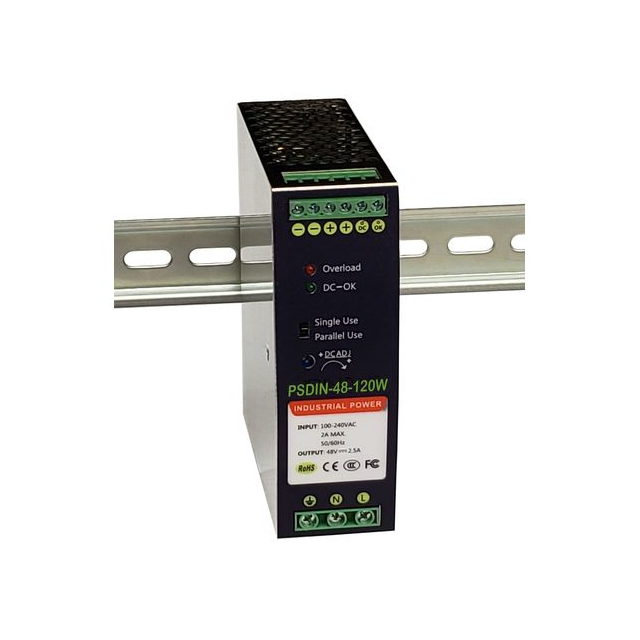

PSDIN-48-120W

Active

Tycon Systems Inc.

AC/DC DIN RAIL SUPPLY 48V 120W

Search across all available documentation for this part.

Active

Tycon Systems Inc.

AC/DC DIN RAIL SUPPLY 48V 120W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSDIN-48-120W	PSDIN Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	90 VAC	90 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	2.5 A	2.5 - 5 A
Efficiency	90 %	90 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	-	240 W
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	48 V	48 V

AC/DC DIN RAIL SUPPLY 48V 240W

Part	Features	Input Type	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)	Applications
Tycon Systems Inc. PSDIN-48-240W	Adjustable Output, Universal Input	AC	5 A	48 V	90 %	1	1.5 kV	-40 °C	70 °C	90 VAC	264 VAC	240 W	ITE (Commercial)
Tycon Systems Inc. PSDIN-48-120W	Adjustable Output, Universal Input	AC	2.5 A	48 V	90 %	1	1.5 kV	-40 °C	70 °C	90 VAC	264 VAC		ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 120W
