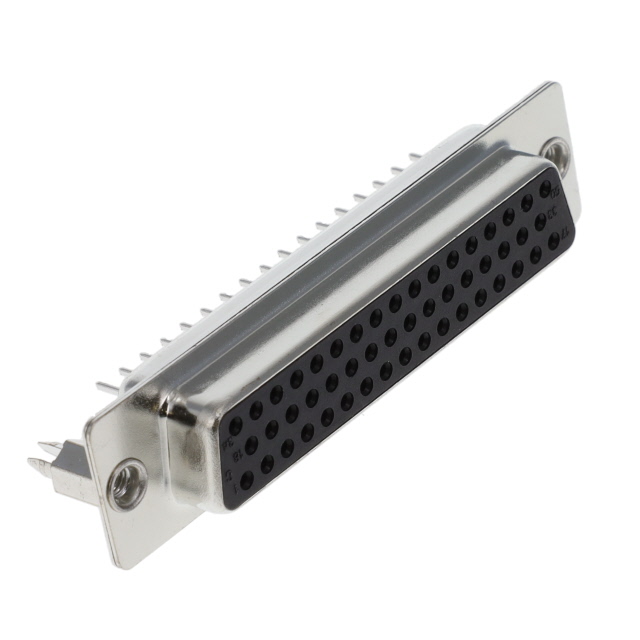

L77SDDG50SOL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDDG50SOL2RM5

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish Thickness	Material Flammability Rating	Connector Type	Flange Feature	Current Rating (Amps)	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Number of Positions	Voltage Rating	Contact Finish	Connector Style	Dielectric Material	Contact Type	Shell Size, Connector Layout	Contact Form	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77SDDG50SOL2RM5	Flash	UL94 V-0	Receptacle Female Sockets	Board Side (M3)	3 A	Black	-55 °C	125 °C	Phosphor Bronze	Solder	50	250 VDC	Gold	D-Sub	Thermoplastic Glass Filled	Signal	5	Stamped	3	Through Hole
Amphenol ICC (Commercial Products) L77SDDG50SC309		UL94 V-0	Receptacle Female Sockets	Cable Side (M3)	3 A	Black	-55 °C	125 °C	Phosphor Bronze		50	250 VDC	Gold	D-Sub	Thermoplastic Glass Filled	Signal	5	Stamped	3	Free Hanging (In-Line)	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDDG50SOL2RM5C309		UL94 V-0	Receptacle Female Sockets	Board Side (M3)	3 A	Black	-55 °C	125 °C	Phosphor Bronze	Solder	50	250 VDC	Gold	D-Sub	Thermoplastic Glass Filled	Signal	5	Stamped	3	Through Hole	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDDG50SOL2C309		UL94 V-0	Receptacle Female Sockets	Board Side (M3)	3 A	Black	-55 °C	125 °C	Phosphor Bronze	Solder	50	250 VDC	Gold	D-Sub	Thermoplastic Glass Filled	Signal	5	Stamped	3	Through Hole	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
