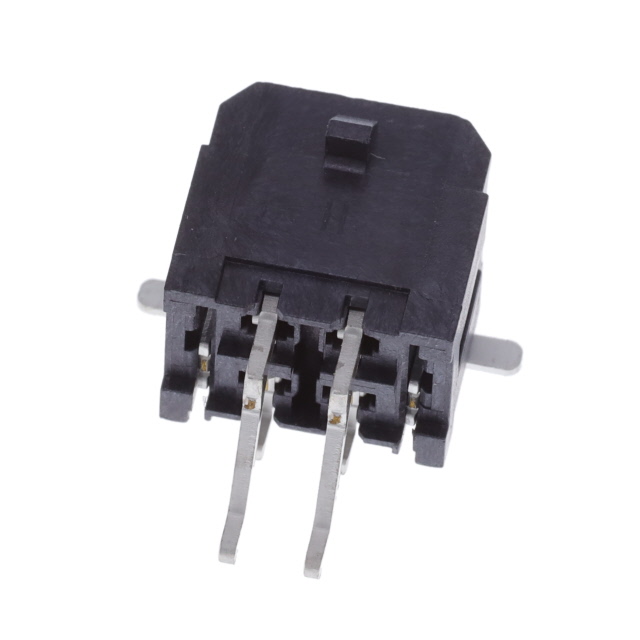

10137924-0411LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 4POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
10137924-0411LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 4POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10137924-0411LF |
|---|---|
| Applications | Telecommunications, Industrial, General Purpose, Military |
| Connector Type | Header |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 7.37 mm |
| Insulation Height | 0.29 in |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.62 | |
| 10 | $ 1.23 | |||
| 100 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.62 | ||
| 10 | $ 1.23 | |||
| 100 | $ 0.95 | |||
| Tape & Reel (TR) | 200 | $ 0.88 | ||
| 400 | $ 0.82 | |||
| 600 | $ 0.78 | |||
| 1000 | $ 0.74 | |||
| 1400 | $ 0.72 | |||
| 2000 | $ 0.69 | |||
| 5000 | $ 0.63 | |||
| 10000 | $ 0.59 | |||
Description
General part information
10137924 Series
Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)
