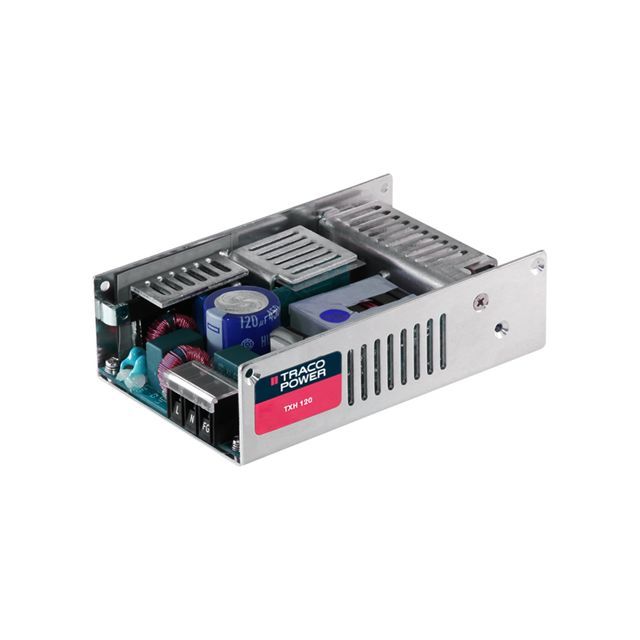

TXH 120-148
ActiveTraco Power
AC/DC CONVERTER 48V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TXH 120-148
ActiveTraco Power
AC/DC CONVERTER 48V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TXH 120-148 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 2.5 A |
| Efficiency | 92 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 5.39 " |
| Size / Dimension [x] | 136.9 mm |
| Size / Dimension [y] | 3.23 " |
| Size / Dimension [y] | 82 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.96 | |
| 10 | $ 98.21 | |||
| 25 | $ 94.93 | |||
| 50 | $ 92.52 | |||
| 100 | $ 90.17 | |||
| 250 | $ 79.78 | |||
Description
General part information
TXH 120 Series
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 370 VDC Input
