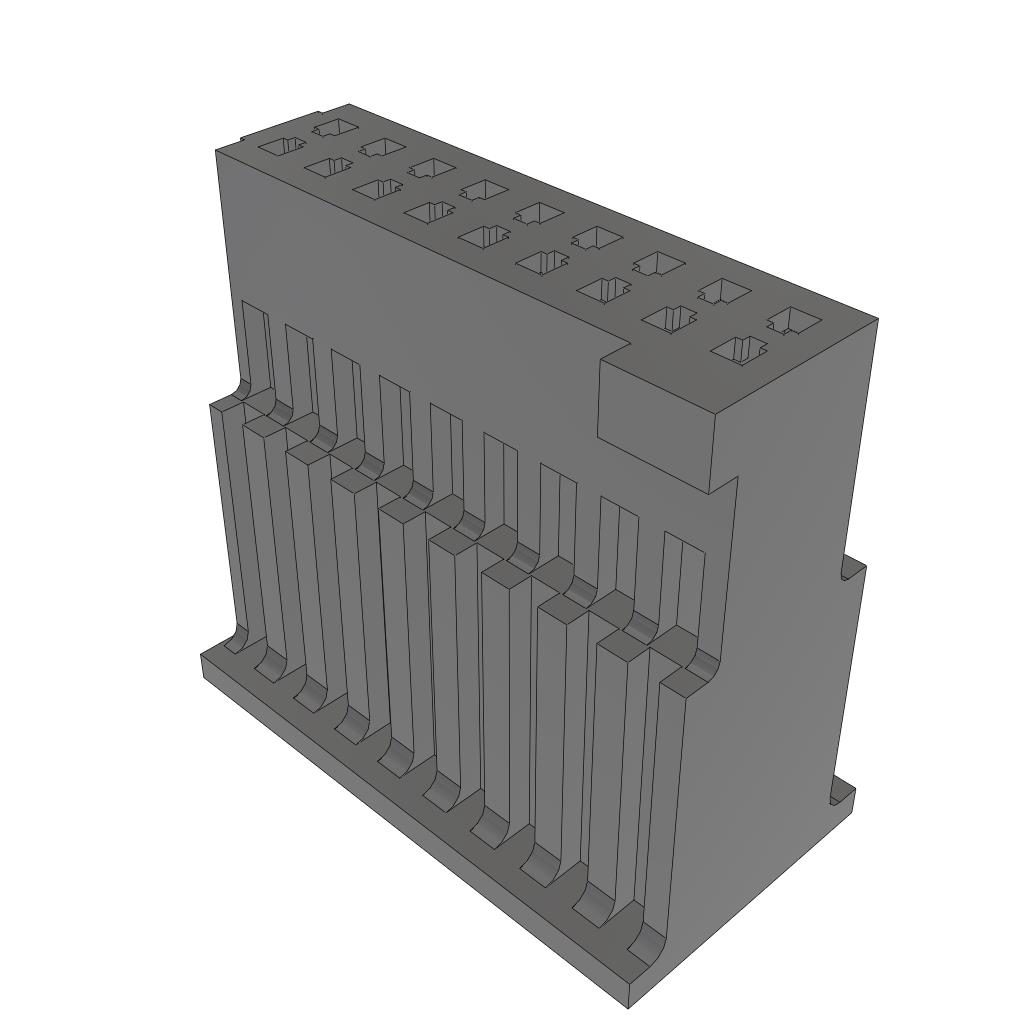

ISDF-09-D

Active

Samtec Inc.

CONN INSULATOR HSG 18POS 1.27MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN INSULATOR HSG 18POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Row Spacing	Row Spacing	Contact Type	Number of Rows	Note	Pitch [x]	Pitch [x]	Contact Termination	Number of Positions	Connector Type	Mounting Type	Insulation Material	Color	Features
Samtec Inc. ISDF-09-D	-55 °C	125 °C	Latch Lock	1.27 mm	0.05 in	Female Socket	2	Contacts Not Included	0.05 in	1.27 mm	Crimp	18	Insulator	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	Black
Samtec Inc. ISDF-09-D-M	-55 °C	125 °C	Latch Lock	1.27 mm	0.05 in	Female Socket	2	Contacts Not Included	0.05 in	1.27 mm	Crimp	18	Insulator	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	Black	Retention Latches
Samtec Inc. ISDF-09-S	-55 °C	125 °C	Latch Lock			Female Socket	1	Contacts Not Included	0.05 in	1.27 mm	Crimp	9	Insulator	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.17

General part information

18 Rectangular Connectors - Housings Insulator Black 0.050" (1.27mm)
