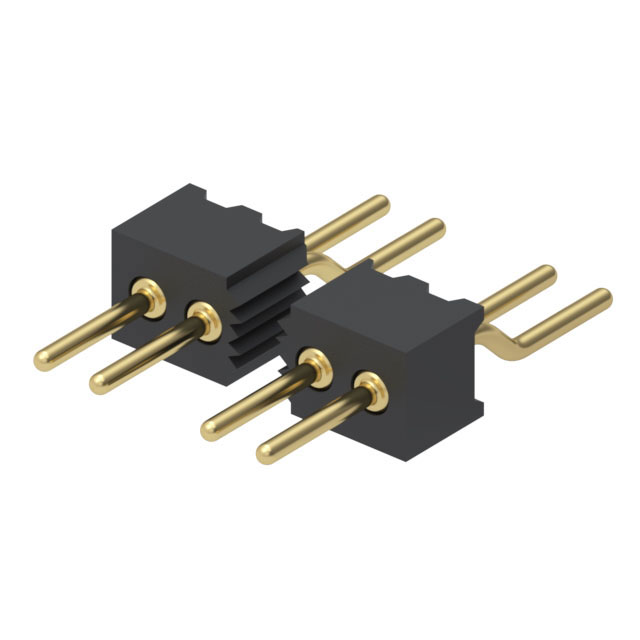

850-10-006-40-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD R/A 6POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

850-10-006-40-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD R/A 6POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	850-10-006-40-001000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

850-10 Series

...

Part	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions Loaded	Number of Positions	Termination	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Mounting Type	Contact Finish - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]
Mill-Max Manufacturing Corp. 850-10-030-20-001000	0.118 in	3 mm	Brass Alloy	All	30	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Through Hole Right Angle	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-032-30-002000			Brass Alloy	All		Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Surface Mount	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-006-30-002000			Brass Alloy	All	6	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Surface Mount	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-031-40-001000			Brass Alloy	All	31	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Surface Mount Right Angle	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-006-40-001000			Brass Alloy	All	6	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Surface Mount Right Angle	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-025-10-001000	0.114 in	2.9 mm	Brass Alloy	All		Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Through Hole	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm	8.1 mm	0.319 in
Mill-Max Manufacturing Corp. 850-10-017-20-001000	0.118 in	3 mm	Brass Alloy	All		Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Through Hole Right Angle	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-049-20-001000	0.118 in	3 mm	Brass Alloy	All	49	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Through Hole Right Angle	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-022-30-002000			Brass Alloy	All	22 positions	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Surface Mount	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 850-10-034-30-002000			Brass Alloy	All	34	Solder	Header	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Unshrouded	Surface Mount	Gold	Black	3 mm	0.118 in	Gold	Polyamide (PA46) Nylon 4/6	Push-Pull	10 çin	0.25 çm	1	0.087 "	2.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 21.63
		10	$ 16.66
		65	$ 13.46
		100	$ 13.04
		130	$ 12.82
		500	$ 11.13
		520	$ 11.63

Description

General part information

850-10 Series

Connector Header Surface Mount, Right Angle 6 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
