TARA6FX

Active

Switchcraft Inc.

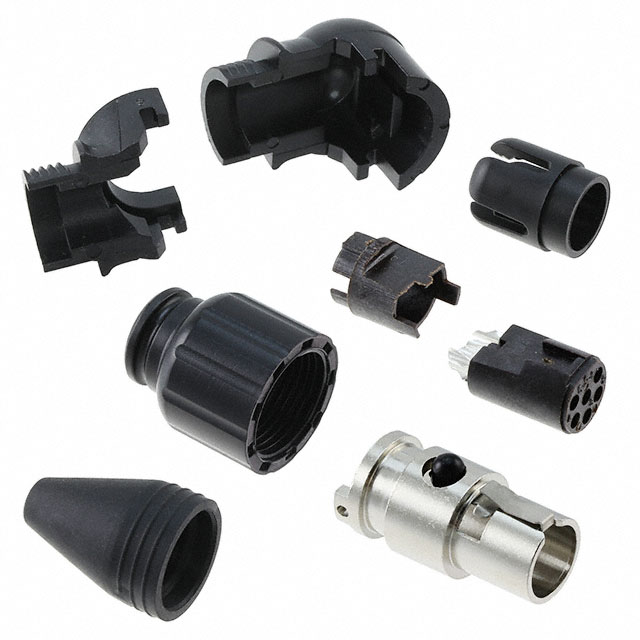

CONN PLUG FMALE MINI XLR 6P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 6P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TARA6FX

Applications	Communication Systems, Medical, Audio, Industrial
Cable Opening [Max] [diameter]	3.81 mm
Cable Opening [Max] [diameter]	0.15 in
Cable Opening [Min] [diameter]	0.12 in
Cable Opening [Min] [diameter]	3.05 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Termination	Solder
Voltage Rating	125 VAC

CONN PLUG FMALE MINI XLR 6P SLDR

Part	Shell Finish	Current Rating (Amps)	Termination	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Color	Mounting Type	Number of Positions	Applications	Contact Finish - Mating	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shell Size - Insert	Primary Material	Contact Material	Features	Voltage Rating	Connector Type
Switchcraft Inc. TARA6FX	Nickel	1.5 A	Solder	0.12 in	3.05 mm	3.81 mm	0.15 in	Latch Lock	Black, Silver	Free Hanging (In-Line), Right Angle	6	Audio, Communication Systems, Industrial, Medical	Silver	Copper Alloy	85 °C	-55 °C	Keyed	Mini XLR	Metal	Copper Alloy	Backshell, Cable Clamp, Ground, Strain Relief	125 VAC	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder
