1350F2Y .687X144YD

Active

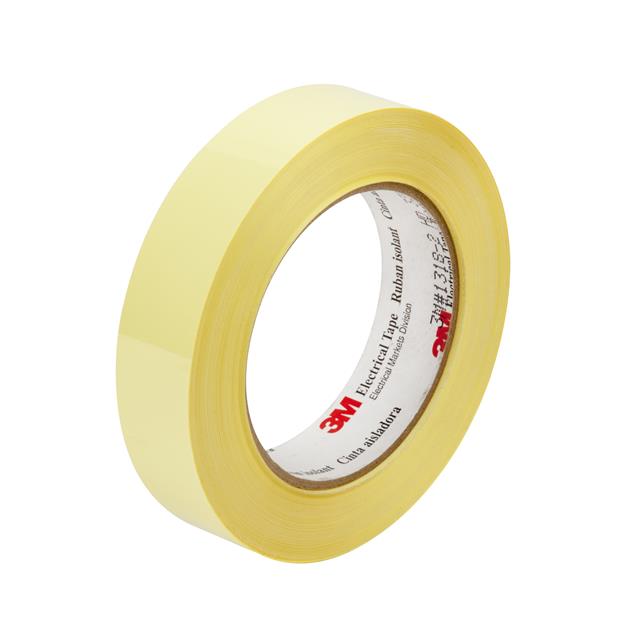

TAPE ELECTRICAL YLW 11/16"X144YD

Deep-Dive with AI

Search across all available documentation for this part.

1350F2Y .687X144YD

Active

TAPE ELECTRICAL YLW 11/16"X144YD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1350F Series

Electrical Tape Acrylic Adhesive Yellow 0.69" (17.48mm) 11/16" X 432' (132m) 144 yds

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1350F2Y .687X144YD	1350F Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Yellow	White, Yellow, Black
Length	144 yds	60 - 144 yd
Length	432 ft	180 - 432 ft
Length	132 m	55 - 132 m
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	Electrical	Electrical, Filament
Temperature Range	130 °C	130 °C
Temperature Range	266 °F	266 °F
Thickness	0.0035 "	0.0025 - 0.0065 "
Thickness	88.9 microns	2.5 - 88.9 microns
Thickness	0.089 mm	0.064 - 0.165 mm
Thickness - Adhesive	1.5 mils	1.5 mils
Thickness - Adhesive	0.0015 in	0.0015 in
Thickness - Adhesive	0.038 mm	0.038 mm
Thickness - Backing, Carrier	0.002 "	0.001 - 0.002 "
Thickness - Backing, Carrier	0.051 mm	0.025 - 0.051 mm
Thickness - Backing, Carrier	2 mils	1 - 2 mils
Usage	-	Holding, Wire Wrapping
Width	-	0.75 in
Width	-	19.05 mm
Width	-	0.75 in
Width	-	0.35 - 2 in
Width	-	9 - 50.8 mm
Width [x]	17.48 mm	17.48 - 609.6 mm
Width [x]	0.69 in	0.69 - 24 in
Width [x]	0.6875 in	0.6875 in

1350F Series

TAPE ELECTRICAL WHITE 24"X72YDS

Part	Temperature Range	Temperature Range	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Length	Length	Length	Backing, Carrier	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness	Thickness	Thickness	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Width [x]	Width [x]	Shelf Life	Width	Width	Width	Usage	Width [x]	Width [y]	Width [y]
3M 1350F-2 W 24"X72YD	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	White	1.5 mils	0.0015 in	0.038 mm	Electrical	609.6 mm	24 in	60 Months
3M 1350F2 W 24"X72YD	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	White	1.5 mils	0.0015 in	0.038 mm	Electrical	609.6 mm	24 in	60 Months
3M 1350F1 W 24"X72YD	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	White	1.5 mils	0.0015 in	0.038 mm	Electrical	609.6 mm	24 in	60 Months
3M 1350FW1 66MX19M	130 °C	266 °F				Acrylic	60 yds	180 ft	55 m	Polyester Film	Date of Manufacture			0.0065 in	6.5 mils	0.165 mm	White				Filament			60 Months	0.75 in	19.05 mm	0.75 in	Holding
3M 1350F2Y .687"X144Y	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	144 yds	432 ft	132 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical	17.48 mm	0.69 in	60 Months					0.6875 in
3M 1350F2Y .687X144YD	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	144 yds	432 ft	132 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical	17.48 mm	0.69 in	60 Months					0.6875 in
3M 1350F-1 1"X72YD	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Black	1.5 mils	0.0015 in	0.038 mm	Electrical	25.4 mm	1 in	60 Months
3M 1350F1Y 66MX9MMM	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical			60 Months						0.35 in	9 mm
3M 1350F-1Y	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic				Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical			60 Months				Wire Wrapping
3M 1350F-1B 2"X72 PLS	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Black	1.5 mils	0.0015 in	0.038 mm	Electrical			60 Months						2 "	50.8 mm
