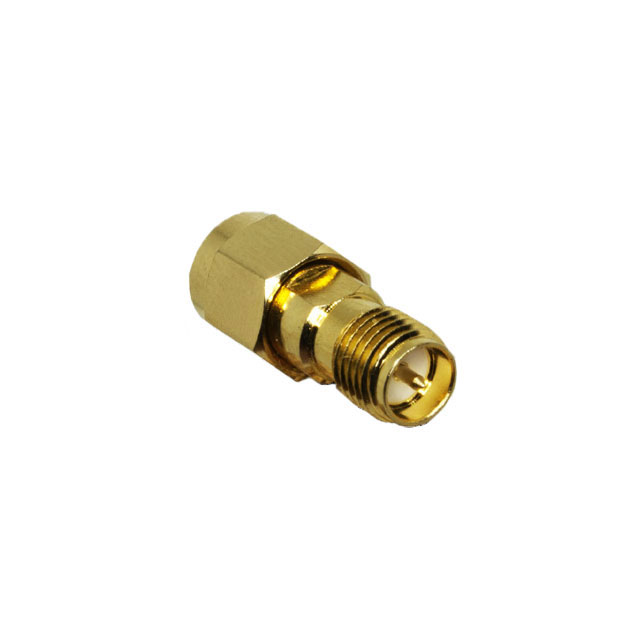

ADP-SMAM-RPSF-G

Active

TE Connectivity Linx

SMA PLUG TO RP-SMA JACK ADAPTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADP-SMAM-RPSF-G

Active

TE Connectivity Linx

SMA PLUG TO RP-SMA JACK ADAPTER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.08

Description

General part information

ADP-SMAM Series

Adapter Coaxial Connector SMA Plug, Male Pin To RP-SMA Jack, Male Pin 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADP-SMAM-RPSF-G	ADP-SMAM Series

Adapter Series	SMA to RP-SMA	SMA to MMCX, SMA to SMB, SMA to SMA, SMA to MCX, SMA to RP-SMA, SMA to U.FL (UMCC)
Adapter Type	Plug to Jack	Plug to Plug, Plug to Jack
Body Finish	Gold	Gold, Nickel
Body Material	Brass	Brass
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Male to Female	Male to Male, Male to Female
Conversion Type	Same Series	Between Series, Same Series
Convert From (Adapter End)	SMA Plug, Male Pin	SMA Plug, Male Pin
Convert To (Adapter End)	RP-SMA Jack, Male Pin	Male Pin, MMCX Plug, Female Socket, SMB Plug, SMA Plug, SMB Jack, MCX Jack, RP-SMA Jack, U.FL Jack, MMCX Jack, MCX Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Threaded, Snap-On
Frequency - Max [Max]	18 GHz	4 - 6000 MHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	125 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 °C
Style	Straight	Straight

ADP-SMAM Series

SMA PLUG TO MMCX PLUG ADAPTER

Part	Body Material	Dielectric Material	Convert From (Adapter End)	Mounting Type	Fastening Type	Body Finish	Style	Mating Cycles	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Frequency - Max [Max]	Adapter Series	Convert To (Adapter End)	Conversion Type	Center Contact Plating	Adapter Type	Center Contact Material
TE Connectivity Linx ADP-SMAM-MMXM	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500	Male to Male	-55 °C	125 °C	50 Ohms	6000 MHz	SMA to MMCX	Male Pin, MMCX Plug	Between Series	Gold	Plug to Plug	Brass
TE Connectivity Linx ADP-SMAM-SMBM-G	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500		-65 ░C	165 °C	50 Ohms	4 GHz	SMA to SMB	Female Socket, SMB Plug	Between Series	Gold	Plug to Plug	Beryllium Copper
TE Connectivity Linx ADP-SMAM-SMAM	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)		Nickel	Straight	500	Male to Male	-65 ░C	165 °C	50 Ohms	12.4 GHz	SMA to SMA	Male Pin, SMA Plug	Same Series	Gold	Plug to Plug	Brass
TE Connectivity Linx ADP-SMAM-SMAM-G	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)		Gold	Straight	500	Male to Male	-65 ░C	165 °C	50 Ohms	18 GHz	SMA to SMA	Male Pin, SMA Plug	Same Series	Gold	Plug to Plug	Brass
TE Connectivity Linx ADP-SMAM-SMBF-G	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500		-65 ░C	165 °C	50 Ohms	4 GHz	SMA to SMB	Male Pin, SMB Jack	Between Series	Gold	Plug to Jack	Brass
TE Connectivity Linx ADP-SMAM-MCXF	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500	Male to Female	-65 ░C	165 °C	50 Ohms	6000 MHz	SMA to MCX	Female Socket, MCX Jack	Between Series	Gold	Plug to Jack	Beryllium Copper
TE Connectivity Linx ADP-SMAM-RPSF-G	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)		Gold	Straight	500	Male to Female	-65 ░C	165 °C	50 Ohms	18 GHz	SMA to RP-SMA	Male Pin, RP-SMA Jack	Same Series	Gold	Plug to Jack	Brass
TE Connectivity Linx ADP-SMAM-UFLF	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500	Male to Male	-55 °C	125 °C	50 Ohms	6000 MHz	SMA to U.FL (UMCC)	Male Pin, U.FL Jack	Between Series	Gold	Plug to Jack	Brass
TE Connectivity Linx ADP-SMAM-MMXF	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500	Male to Female	-55 °C	125 °C	50 Ohms	6000 MHz	SMA to MMCX	Female Socket, MMCX Jack	Between Series	Gold	Plug to Jack	Beryllium Copper
TE Connectivity Linx ADP-SMAM-MCXM	Brass	Polytetrafluoroethylene (PTFE)	SMA Plug, Male Pin	Free Hanging (In-Line)	Snap-On, Threaded	Gold	Straight	500	Male to Male	-65 ░C	165 °C	50 Ohms	6000 MHz	SMA to MCX	Male Pin, MCX Plug	Between Series	Gold	Plug to Plug	Brass
