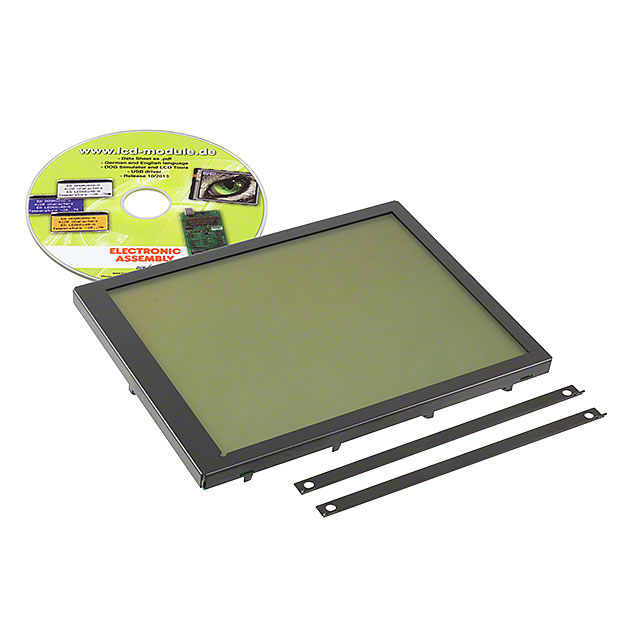

EA EDIP320J-8LW

Active

Display Visions

GRAPHIC DISPLAY FSTN BLACK 5.7"

Search across all available documentation for this part.

Active

Display Visions

GRAPHIC DISPLAY FSTN BLACK 5.7"

Technical Specifications

Parameters and characteristics for this part

Specification	EA EDIP320J-8LW

Background Color	White
Backlight	LED - White
Diagonal Screen Size	5.7 in
Diagonal Screen Size	144.78 mm
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.36 mm
Dot Pitch [y]	0.36 mm
Dot Pixels	QVGA
Dot Pixels [x]	320 pixels
Dot Pixels [y]	240 pixels
Dot Size [x]	0.34 mm
Dot Size [y]	0.34 mm
Graphics Color	Black
Interface	I2C, SPI, RS-232
Viewing Area [x]	121 mm
Viewing Area [y]	92.6 mm

GRAPHIC DISPLAY FSTN BLACK 5.7"

Part	Viewing Area [x]	Viewing Area [y]	Dot Pitch [y]	Dot Pitch [x]	Interface	Graphics Color	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Display Type	Background Color	Backlight	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Dot Size [x]	Dot Size [y]
Display Visions EA EDIP320J-8LW	121 mm	92.6 mm	0.36 mm	0.36 mm	I2C, RS-232, SPI	Black	Transflective	5.7 in	144.78 mm	FSTN - Film Super-Twisted Nematic	White	LED - White	QVGA	320 pixels	240 pixels	0.34 mm	0.34 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective Black FSTN - Film Super-Twisted Nematic I2C, RS-232, SPI 5.7" (144.78mm) 320 x 240 (QVGA)
