CBP50-C

Active

Panduit Corp

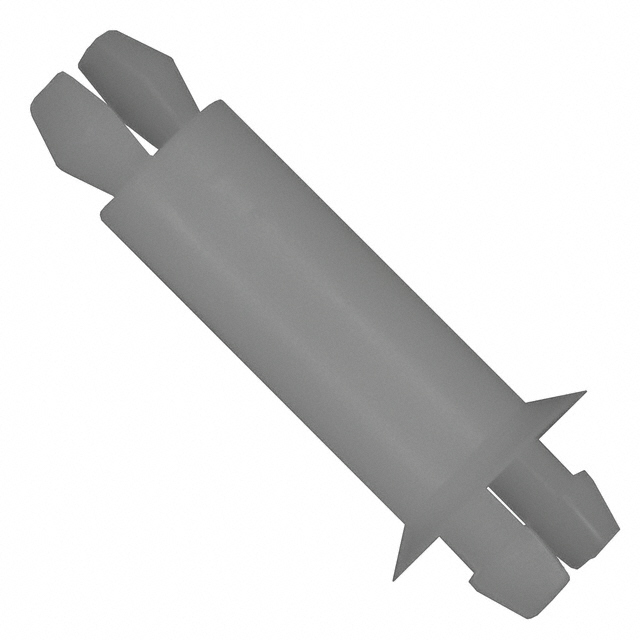

CIRCUIT BOARD POST, NATURAL, PUSH BARB, 12.7 MM STANDOFF HEIGHT, 19.8 MM OVERALL

Search across all available documentation for this part.

Active

Panduit Corp

CIRCUIT BOARD POST, NATURAL, PUSH BARB, 12.7 MM STANDOFF HEIGHT, 19.8 MM OVERALL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Snap Lock Nylon 0.500" (12.70mm) 1/2"

Technical documentation and resources

Specification	CBP50-C	CBP50 Series

Between Board Height	0.5 in	0.5 in
Between Board Height	12.7 mm	12.7 mm
Between Board Height	0.5 in	0.5 in
Holding Type	Snap Fit	Snap Fit
Length - Overall [x]	0.78 in	0.78 in
Length - Overall [x]	19.81 mm	19.81 mm
Material	Nylon	Nylon
Mounting Hole Diameter [diameter]	3.96 mm	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in	0.156 in
Mounting Panel Thickness	1.5 mm	1.5 mm
Mounting Panel Thickness	0.06 in	0.06 in
Mounting Type	Snap Lock	Snap Lock
Support Hole Diameter [diameter]	0.15625 in	0.15625 in
Support Hole Diameter [diameter]	3.96 mm	3.96 mm
Support Hole Diameter [diameter]	0.156 in	0.156 in
Support Panel Thickness	0.06 in	0.06 in
Support Panel Thickness	1.5 mm	1.5 mm

Part	Support Panel Thickness	Support Panel Thickness	Holding Type	Between Board Height	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material
Panduit Corp CBP50-C	0.06 in	1.5 mm	Snap Fit	0.5 in	12.7 mm	0.5 in	0.78 in	19.81 mm	Snap Lock	0.15625 in	3.96 mm	0.156 in	1.5 mm	0.06 in	3.96 mm	0.15625 in	0.156 in	Nylon
Panduit Corp CBP50-M	0.06 in	1.5 mm	Snap Fit	0.5 in	12.7 mm	0.5 in	0.78 in	19.81 mm	Snap Lock	0.15625 in	3.96 mm	0.156 in	1.5 mm	0.06 in	3.96 mm	0.15625 in	0.156 in	Nylon
