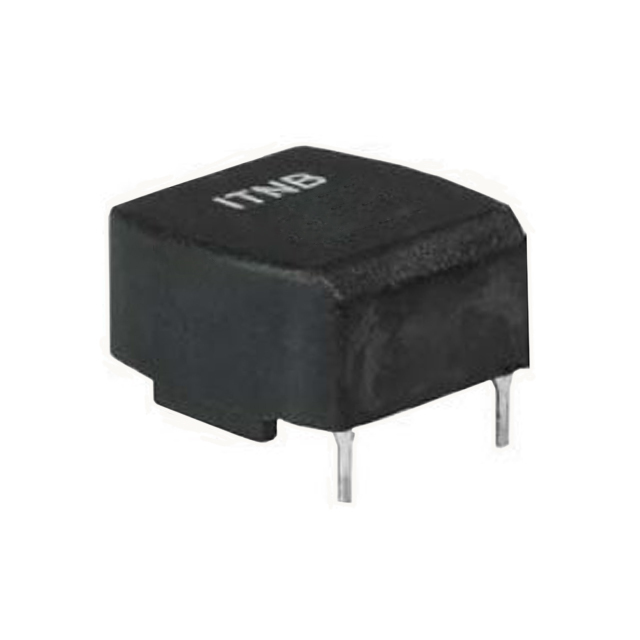

ITNF-0249-D101
ActiveSCHURTER Inc.
ITNF PULSE TRANSFORMER THT 0.1A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITNF-0249-D101
ActiveSCHURTER Inc.
ITNF PULSE TRANSFORMER THT 0.1A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ITNF-0249-D101 | ITNF Series |
|---|---|---|
| Height - Seated (Max) [Max] [z] | 13 mm | 10.6 - 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " | 0.417 - 0.512 in |
| Inductance | 1.4 mH | 1.4 - 1.6 mH |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [custom] | 100 °C, -25 °C | -25 - 100 °C |
| Size / Dimension | - | 0.512 - 0.878 in |
| Size / Dimension | - | 0.598 - 0.894 in |
| Size / Dimension [x] | 0.701 in, 17.8 mm | 0.701 - 22.3 mm |
| Size / Dimension [y] | 18.2 mm, 0.717 in | 0.717 - 22.7 mm |
| Transformer Type | Isolation and Data Interface (Encapsulated) | Isolation and Data Interface (Encapsulated) |
| Turns Ratio - Primary:Secondary [custom] | 1 | 1 |
| Turns Ratio - Primary:Secondary [custom] | 1 | 1 |
| Turns Ratio - Primary:Secondary [custom] | 1 | 1 |
| Weight | 9.12 g | 3.13 - 9.97 g |
| Weight | 0.32 oz | 0.11 - 0.35 oz |
ITNF Series
ITNF PULSE TRANSFORMER THT 0.1A
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Transformer Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [custom] | Mounting Type | Weight | Weight | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. ITNF-0135-D101 | 13 mm | 15.2 mm | 0.512 in | 0.598 in | 1 | 1 | 1 | Isolation and Data Interface (Encapsulated) | 10.6 mm | 0.417 in | -25 °C, 100 °C | Through Hole | 3.13 g | 0.11 oz | |
SCHURTER Inc. ITNF-0249-D101 | 0.701 in, 17.8 mm | 0.717 in, 18.2 mm | 1 | 1 | 1 | Isolation and Data Interface (Encapsulated) | 13 mm | 0.512 " | -25 °C, 100 °C | Through Hole | 9.12 g | 0.32 oz | 1.4 mH | ||
SCHURTER Inc. ITNF-0239-D202 | 22.3 mm | 22.7 mm | 0.878 in | 0.894 in | 1 | 1 | 1 | Isolation and Data Interface (Encapsulated) | -25 °C, 100 °C | Through Hole | 9.97 g | 0.35 oz | 1.6 mH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.87 | |
| 10 | $ 5.30 | |||
| 45 | $ 4.96 | |||
| 90 | $ 4.80 | |||
| 135 | $ 4.71 | |||
| 270 | $ 4.57 | |||
| 540 | $ 4.42 | |||
| 1035 | $ 4.29 | |||
Description
General part information
ITNF Series
1.4mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1:1 Through Hole
