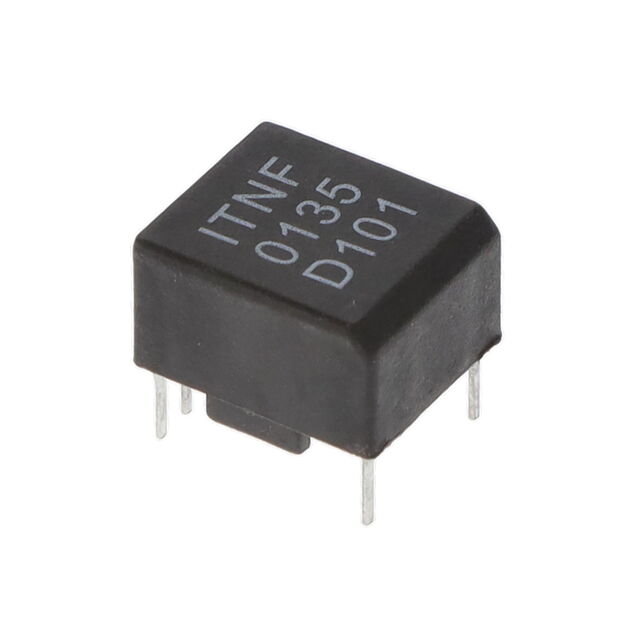

ITNF-0135-D101

Active

SCHURTER Inc.

ITNF PULSE TRANSFORMER THT 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITNF PULSE TRANSFORMER THT 0.1A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ITNF-0135-D101	ITNF Series

Height - Seated (Max) [Max] [z]	10.6 mm	10.6 - 13 mm
Height - Seated (Max) [Max] [z]	0.417 in	0.417 - 0.512 in
Inductance	-	1.4 - 1.6 mH
Mounting Type	Through Hole	Through Hole
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Size / Dimension [x]	13 mm	0.701 - 22.3 mm
Size / Dimension [x]	0.512 in	0.512 - 0.878 in
Size / Dimension [y]	15.2 mm	0.717 - 22.7 mm
Size / Dimension [y]	0.598 in	0.598 - 0.894 in
Transformer Type	Isolation and Data Interface (Encapsulated)	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1	1
Turns Ratio - Primary:Secondary [custom]	1	1
Turns Ratio - Primary:Secondary [custom]	1	1
Weight	3.13 g	3.13 - 9.97 g
Weight	0.11 oz	0.11 - 0.35 oz

ITNF PULSE TRANSFORMER THT 0.1A

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Transformer Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [custom]	Mounting Type	Weight	Weight	Inductance
SCHURTER Inc. ITNF-0135-D101	13 mm	15.2 mm	0.512 in	0.598 in	1	1	1	Isolation and Data Interface (Encapsulated)	10.6 mm	0.417 in	-25 °C, 100 °C	Through Hole	3.13 g	0.11 oz
SCHURTER Inc. ITNF-0249-D101	0.701 in, 17.8 mm	0.717 in, 18.2 mm			1	1	1	Isolation and Data Interface (Encapsulated)	13 mm	0.512 "	-25 °C, 100 °C	Through Hole	9.12 g	0.32 oz	1.4 mH
SCHURTER Inc. ITNF-0239-D202	22.3 mm	22.7 mm	0.878 in	0.894 in	1	1	1	Isolation and Data Interface (Encapsulated)			-25 °C, 100 °C	Through Hole	9.97 g	0.35 oz	1.6 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.1mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1:1 Through Hole
