Q-2000P0005060i
ActiveAmphenol Custom Cable
CBL ASSY HDBNC-NTYPE JCK-JCK 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2000P0005060i
ActiveAmphenol Custom Cable
CBL ASSY HDBNC-NTYPE JCK-JCK 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2000P0005060i |
|---|---|
| 1st Connector | HD-BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 96.15 | |
| 25 | $ 94.27 | |||
| 50 | $ 92.38 | |||
| 100 | $ 90.50 | |||
| 250 | $ 88.62 | |||
Description
General part information
Q-2000P0 Series

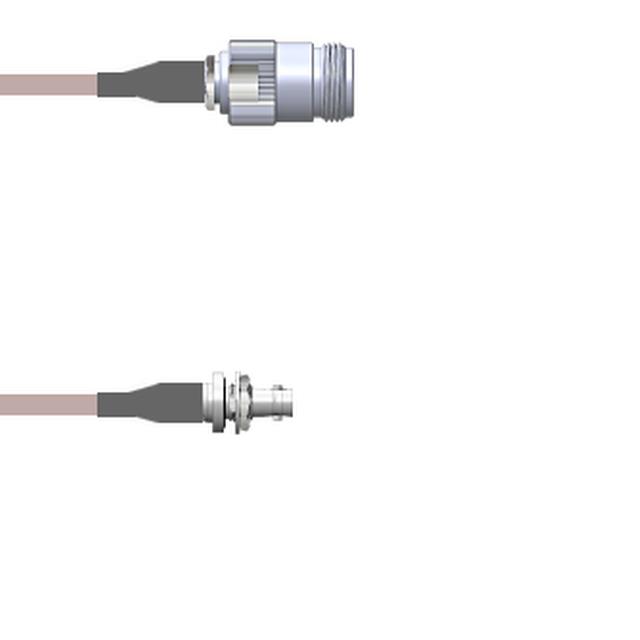

Cable Assembly Coaxial HD-BNC to N-Type RG-316 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
