1105-1521-019

Active

Radiall USA, Inc.

SMC F RA NA CR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA NA CR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

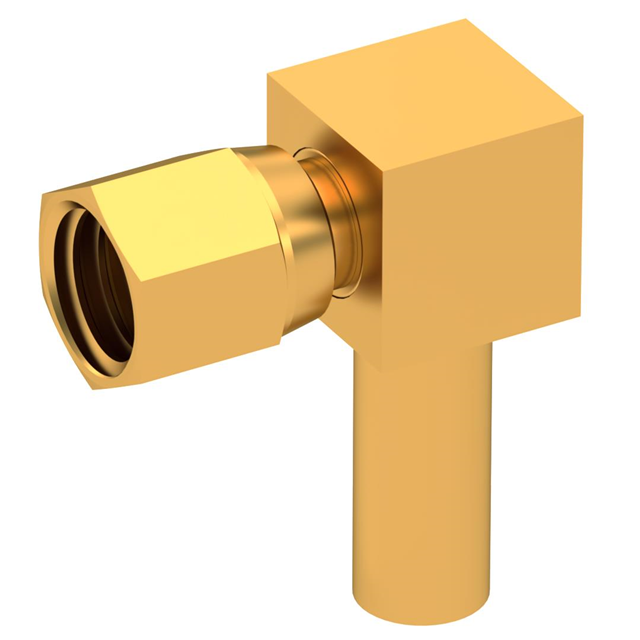

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1105-1521-019	1105-1521 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RD-316	RD-316, 179, RG-174, 316, RG-178
Cable Group	-	196
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.5 dB	0.5 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	335 V	335 V

SMC F RA NA CR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Dielectric Material	Voltage Rating	Connector Type	Connector Style	Shield Termination	Cable Group	Body Material	Center Contact Material	Contact Termination	Body Finish	Mounting Type	Mating Cycles	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Impedance	Insertion Loss	Cable Group
Radiall USA, Inc. 1105-1521-019	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	335 V	Female Socket, Plug	SMC	Crimp	RD-316	Brass	Beryllium Copper	Crimp	Gold	Free Hanging (In-Line), Right Angle	500	Gold	10 GHz	1	50 Ohms	0.5 dB
Radiall USA, Inc. 1105-1521-003	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	335 V	Female Socket, Plug	SMC	Crimp	179, 316, RG-174	Brass	Beryllium Copper	Crimp	Gold	Free Hanging (In-Line), Right Angle	500	Gold	10 GHz	1	50 Ohms	0.5 dB
Radiall USA, Inc. 1105-1521-002	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)		Female Socket, Plug	SMC	Crimp	RG-178	Brass	Beryllium Copper	Crimp	Gold	Free Hanging (In-Line), Right Angle	500	Gold	10 GHz	1	50 Ohms	0.5 dB	196
