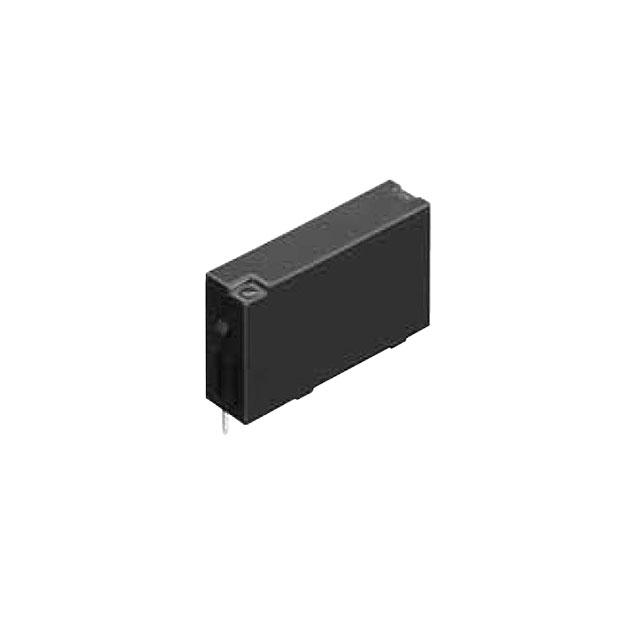

APAN3105
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 5A 5V
Deep-Dive with AI
Search across all available documentation for this part.
APAN3105
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 5A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APAN3105 |
|---|---|
| Approval Agency | cURus, TUV |
| Coil Current | 22 mA |
| Coil Resistance | 227 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 550 W, 1250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC, 110 VDC |
| Termination Style | PC Pin |
