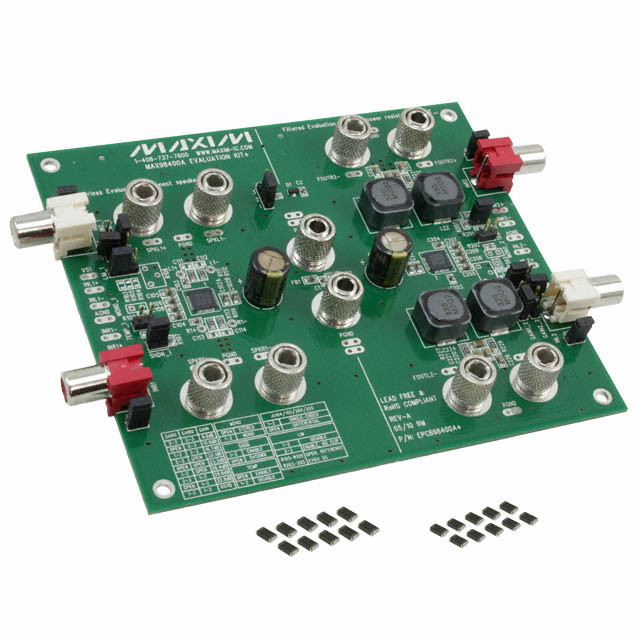

MAX98400AEVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX98400A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX98400AEVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX98400A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX98400AEVKIT+ | MAX98400 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Features | - | Short-Circuit and Thermal Protection, Differential Inputs, Depop, Shutdown |
| Max Output Power x Channels @ Load | 20 W, 8 Ohm, 2 | 2 - 20 W |
| Max Output Power x Channels @ Load | - | 8 Ohm |
| Max Output Power x Channels @ Load | - | 2 |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Package / Case | - | 24-WFQFN Exposed Pad, 36-WFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-TQFN (4x4), 36-TQFN (6x6) |
| Type | - | Class D |
| Utilized IC / Part | MAX98400A | MAX98400B, MAX98400A |
| Voltage - Supply [Max] | 28 V | 28 V |
| Voltage - Supply [Min] | 8 V | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.64 | |
MAX98400 Series
IC AMP CLASS D STEREO 12W 24TQFN
| Part | Output Type | Features | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load | Max Output Power x Channels @ Load [x] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type | Supplier Device Package | Utilized IC / Part | Supplied Contents | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX98400BETG+T | 2-Channel (Stereo) | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | 24-WFQFN Exposed Pad | 28 V | 8 V | 8 Ohm | 12 W | 2 | 85 °C | -40 °C | Class D | Surface Mount | 24-TQFN (4x4) | |||
Analog Devices Inc./Maxim Integrated MAX98400BEVKIT+ | 2-Channel (Stereo) | 28 V | 8 V | 8 Ohm | 12 W | 2 | MAX98400B | Board(s) | Fully Populated | |||||||
Analog Devices Inc./Maxim Integrated MAX98400AETX+T | 2-Channel (Stereo) | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | 36-WFQFN Exposed Pad | 28 V | 8 V | 2, 8 Ohm, 20 W | 85 °C | -40 °C | Class D | Surface Mount | 36-TQFN (6x6) | |||||
Analog Devices Inc./Maxim Integrated MAX98400BETG+ | 2-Channel (Stereo) | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | 24-WFQFN Exposed Pad | 28 V | 8 V | 8 Ohm | 12 W | 2 | 85 °C | -40 °C | Class D | Surface Mount | 24-TQFN (4x4) | |||
Analog Devices Inc./Maxim Integrated MAX98400AEVKIT+ | 2-Channel (Stereo) | 28 V | 8 V | 2, 8 Ohm, 20 W | MAX98400A | Board(s) | Fully Populated | |||||||||
Analog Devices Inc./Maxim Integrated MAX98400AETX+ | 2-Channel (Stereo) | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | 36-WFQFN Exposed Pad | 28 V | 8 V | 2, 8 Ohm, 20 W | 85 °C | -40 °C | Class D | Surface Mount | 36-TQFN (6x6) |
Description
General part information
MAX98400 Series
MAX98400A - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
