98103.2

Active

Conta-Clip, Inc.

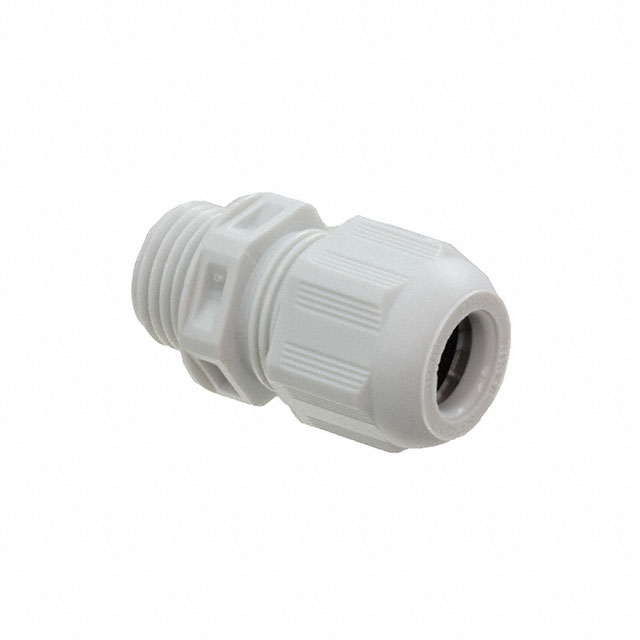

CABLE GLAND 4.5-10MM M16

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

CABLE GLAND 4.5-10MM M16

Technical Specifications

Parameters and characteristics for this part

Specification	98103.2

Color	Light Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.177 in
Outside Cable Diameter (Min) [Min] [diameter]	4.5 mm
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.35 "
Thread Length	8.89 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Color	Thread Size	Material	Type	Ingress Protection
Conta-Clip, Inc. 98103.2	0.394 "	10 mm	0.35 "	8.89 mm	0.177 in	4.5 mm	0.63 in	16 mm	Light Gray	M16x1.5	Polyamide (PA) Nylon	Cable Gland	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Light Gray

Technical documentation and resources

No documents available
