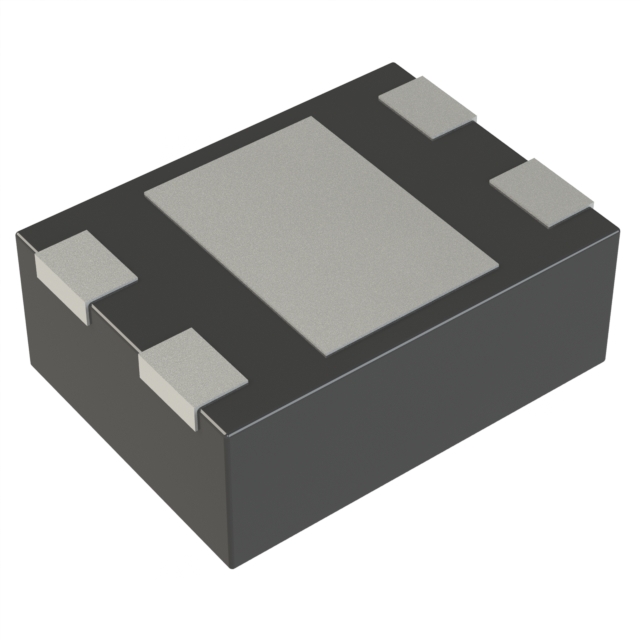

XC6504A4419R-G

Active

Torex Semiconductor Ltd

IC REG LIN 4.4V 150MA USPQ-4B04

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XC6504A4419R-G

Active

Torex Semiconductor Ltd

IC REG LIN 4.4V 150MA USPQ-4B04

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6504A4419R-G

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	1.8 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4-UDFN Exposed Pad
Protection Features	Over Current
Supplier Device Package	USPQ-4B04
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Min/Fixed)	4.4 V
Voltage Dropout (Max) [Max]	0.51 V

XC6504 Series

Part	Protection Features	Supplier Device Package	Package / Case	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Current - Output	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Control Features	Voltage - Input (Max) [Max]	Number of Regulators	Current - Quiescent (Iq)	Mounting Type	Voltage - Output (Min/Fixed)
Torex Semiconductor Ltd XC6504A231MR-G	Over Current	SOT-25	SC-74A SOT-753	1.05 V	2.3 V	150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount
Torex Semiconductor Ltd XC6504A221NR-G	Over Current	SSOT-24	SC-82	1.05 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount	2.2 V
Torex Semiconductor Ltd XC6504A2117R-G	Over Current	USPN-4B02	4-XFDFN	1.2 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount	2.1 V
Torex Semiconductor Ltd XC6504A2319R-G	Over Current	USPQ-4B04	4-UDFN Exposed Pad	1.05 V	2.3 V	150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount
Torex Semiconductor Ltd XC6504A161NR-G	Over Current	SSOT-24	SC-82	1.54 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.27 µA	Surface Mount	1.6 V
Torex Semiconductor Ltd XC6504A271NR-G	Over Current	SSOT-24	SC-82	0.82 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount	2.7 V
Torex Semiconductor Ltd XC6504A391NR-G	Over Current	SSOT-24	SC-82	0.59 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount	3.9 V
Torex Semiconductor Ltd XC6504A4419R-G	Over Current	USPQ-4B04	4-UDFN Exposed Pad	0.51 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.8 µA	Surface Mount	4.4 V
Torex Semiconductor Ltd XC6504A341MR-G	Over Current	SOT-25	SC-74A SOT-753	0.67 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount	3.4 V
Torex Semiconductor Ltd XC6504A3517R-G	Over Current	USPN-4B02	4-XFDFN	0.59 V		150 mA	Positive	85 °C	-40 °C	1.81 mOhm	Enable	6 V	1	1.5 µA	Surface Mount	3.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.16
		6000	$ 0.15
		15000	$ 0.14
		30000	$ 0.13
		75000	$ 0.13

Description

General part information

XC6504 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA USPQ-4B04
