BFB1612L

Obsolete

Delta Electronics

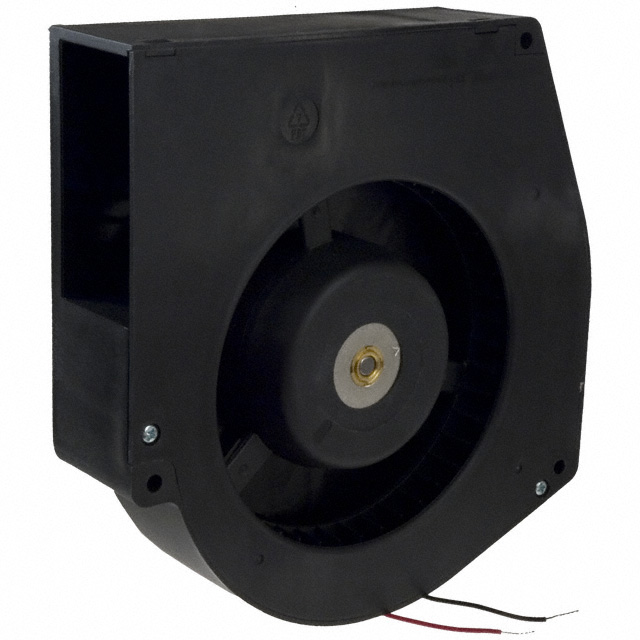

FAN BLOWER 159X40MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER 159X40MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	RPM	Material - Frame	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Blade	Air Flow	Air Flow	Bearing Type	Termination	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Current Rating (Amps)	Lifetime @ Temp.	Weight	Weight	Voltage - Rated	Width [y]
Delta Electronics BFB1612L	CE CSA UL VDE	9.6 W	13.2 VDC	7 V	210.7 Pa	0.846 in H2O	1800 RPM	Plastic	Rectangular/Rounded	165 mm	159 mm	Plastic	49.8 CFM	1.39 m³/min	Ball	2 Wire Leads	Blower	-10 °C	-10 °C	60 °C	60 °C	51.5 dB	800 mA	50000 Hrs	589.7 g	1.3 lbs	12 VDC	40 mm
Delta Electronics BFB1612H	CE CSA UL VDE		13.2 VDC	7 V	343.2 Pa	1.378 in H2O	2200 RPM	Plastic	Rectangular/Rounded	165 mm	159 mm	Plastic	61.8 CFM	1.73 mł/min	Ball	2 Wire Leads	Blower	-10 °C	-10 °C	60 °C	60 °C	56.5 dB	1.43 A	50000 Hrs	589.7 g	1.3 lbs	12 VDC	40 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 12VDC Rectangular/Rounded - 159mm L x 165mm H Ball 49.8 CFM (1.39m³/min) 2 Wire Leads
