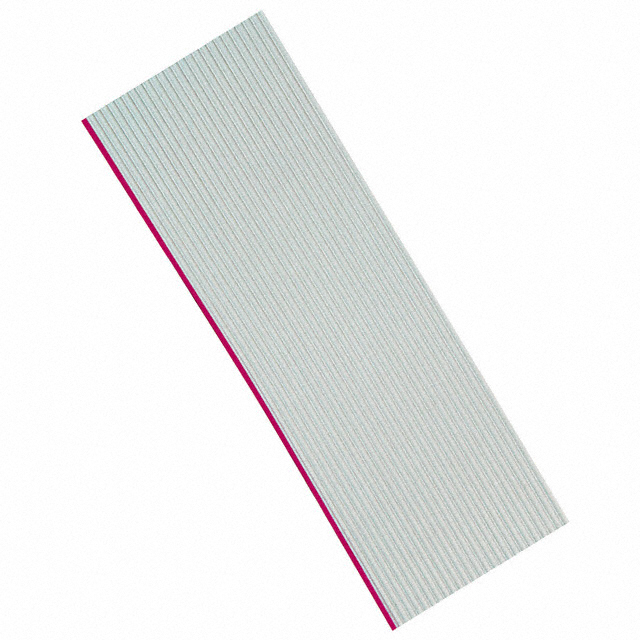

AWG28-25/G/300

Active

Assmann WSW Components

CBL RIBN 25COND 0.05 GRAY FOOT

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL RIBN 25COND 0.05 GRAY FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-25/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	91.44 m, 7.62 m
Length	300 ft, 25 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	25
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	1.25 "
Ribbon Width [x]	31.75 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Length [x]	Length [x]	Spool Size	Spool Size	Insulation Resistance	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Ribbon Thickness	Ribbon Thickness	Pitch [x]	Pitch [x]	Shielding	First Conductor Mark	Wire Gauge	Conductor Material	Jacket Color	Jacket (Insulation) Material	Ribbon Width [x]	Ribbon Width [x]	Length	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Ribbon Width	Ribbon Width	Operating Temperature
Assmann WSW Components AWG28-25/G/300	100 ft	30.48 m	300 ft	91.44 m	100 MOhms	7.62 m 91.44 m	25 ft 300 ft	105 ░C	-10 °C	0.89 mm	0.035 in	0.05 in	1.27 mm	Unshielded	Red	28 AWG	Copper Tinned	Gray	Poly-Vinyl Chloride (PVC)	1.25 "	31.75 mm	Enter Number of Feet in Order Quantity	UL Style 2651	Flat Cable	7	36 AWG	300 V	25
Assmann WSW Components AWG28-25/F-1/300					100 MOhms	91.44 m	300 ft	105 ░C	-10 °C	0.89 mm	0.035 in	0.039 in	1 mm	Unshielded		28 AWG	Copper Tinned	Multiple	Poly-Vinyl Chloride (PVC)				UL Style 2651	Flat Cable	7	36 AWG	300 V	25	0.984 "	25 mm
Assmann WSW Components AWG28-25/F/300	10 ft	3.05 m	300 ft	91.44 m	100 MOhms	15.24 m 91.44 m	50 ft 300 ft			0.89 mm	0.035 in	0.05 in	1.27 mm	Unshielded	Red	28 AWG	Copper Tinned	Multiple	Poly-Vinyl Chloride (PVC)	1.25 "	31.75 mm	Enter Number of Feet in Order Quantity	UL Style 2651	Flat Cable	7	36 AWG	300 V	25			105 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 25 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity
