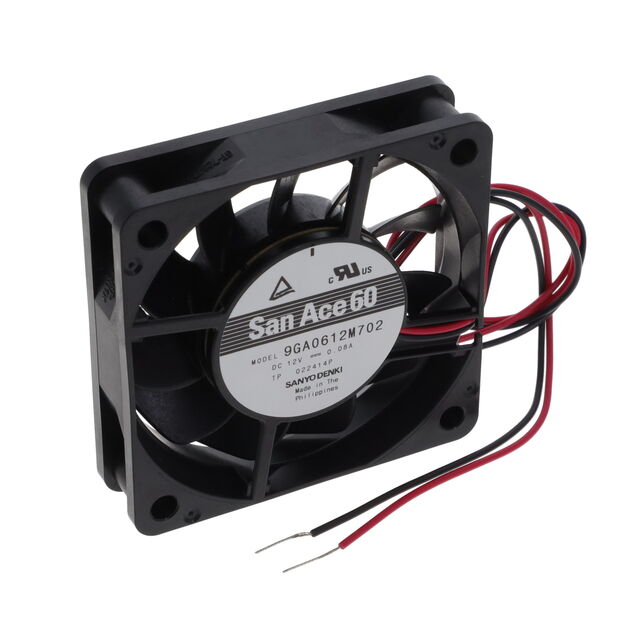

Specification	9GA0612M702

Air Flow	15.9 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Lifetime	60000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	960 mW
RPM	3900 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.142 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	6 VDC
Weight	0.111 lb
Width	15 mm

9GA Type Series

...

Part	Air Flow	Power (Watts)	Termination Leads Count	Termination Type	Termination	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	RPM	Approval Agency	Fan Type	Weight	Width	Features	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Static Pressure	Bearing Type	Noise	Material - Blade	Lifetime	Material - Frame	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Lifetime
Sanyo Denki America Inc. 9GA0612K1021	53 CFM	11.4 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	14800 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	Locked Rotor Protection	12 VAC	-4 °F	158 °F	2.4 in H2O	Ball	59 dB	Plastic	Varies Based on Temperature	Plastic	0.95 A	10.8 VDC	13.2 VDC
Sanyo Denki America Inc. 9GA0612G9D001	21.9 CFM	3.24 W	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	6200 RPM	CSA TUV UL	Tubeaxial	0.078 lb	10 mm	Locked Rotor Sensor	12 VAC	-20 °C	60 °C	0.26 in H2O	Ball	43 dB	Plastic	Varies Based on Temperature	Plastic	270 mA	7 V	13.2 VDC
Sanyo Denki America Inc. 9GA0612K1011	53 CFM	11.4 W	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	14800 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	Locked Rotor Protection Speed Sensor (Tach)	12 VAC	-4 °F	158 °F	2.4 in H2O	Ball	59 dB	Plastic	Varies Based on Temperature	Plastic	0.95 A	10.8 VDC	13.2 VDC
Sanyo Denki America Inc. 9GA0612L702	10.9 CFM	0.36 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	2800 RPM	CSA TUV UL	Tubeaxial	0.111 lb	15 mm	Locked Rotor Protection	12 VAC	-4 °F	158 °F	0.072 in H2O	Ball	17 dB	Plastic		Plastic	30 mA	6 VDC	13.8 VDC	60000 Hrs
Sanyo Denki America Inc. 9GA0612P6S001	24.7 CFM	1.8 W	4 leads	Wire Leads	4 Wire Leads	60 mm	Square	60 mm	5500 RPM	CSA TUV UL	Tubeaxial	0.154 lb	20 mm	PWM Control Speed Sensor (Tach)	12 VAC	14 °F	158 °F	0.326 in H2O	Ball	36 dB	Plastic		Plastic	150 mA	10.8 VDC	13.2 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0612H7D01	19.7 CFM	1.2 W	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	4900 RPM	CSA TUV UL	Tubeaxial	0.111 lb	15 mm	Locked Rotor Sensor	12 VAC	-4 °F	158 °F	0.223 in H2O	Ball	34 dB	Plastic	Varies Based on Temperature	Plastic	100 mA	6 VDC	13.8 VDC
Sanyo Denki America Inc. 9GA0612M6D001	12 CFM	600 mW	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	2700 RPM	CSA TUV UL	Tubeaxial	0.156 lb	20 mm	Locked Rotor Sensor	12 VAC	-4 °F	158 °F	0.08 in H2O	Ball	18 dB	Plastic		Plastic	50 mA	10.8 VDC	13.2 VDC	60000 Hrs
Sanyo Denki America Inc. 9GA0612P1H03	40.6 CFM	6.6 W	4 leads	Wire Leads	4 Wire Leads	60 mm	Square	60 mm	11500 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	PWM Control Speed Sensor (Tach)	12 VAC	-4 °F	158 °F	1.504 in H2O	Ball	52 dB	Plastic		Plastic	0.55 A	10.8 VDC	13.2 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0612H9002	17.6 CFM	1.68 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	5000 RPM	CSA TUV UL	Tubeaxial	0.078 lb	10 mm	Locked Rotor Protection	12 VAC	-4 °F	158 °F	0.17 in H2O	Ball	37 dB	Plastic	Varies Based on Temperature	Plastic	140 mA	7 V	13.8 VDC
Sanyo Denki America Inc. 9GA0612J1021	62 CFM	18 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	17500 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	Locked Rotor Protection	12 VAC	-20 °C	60 °C	3.3 in H2O	Ball	63 dB	Plastic	Varies Based on Temperature	Plastic	1.5 A	10.8 VDC	12.6 VDC
