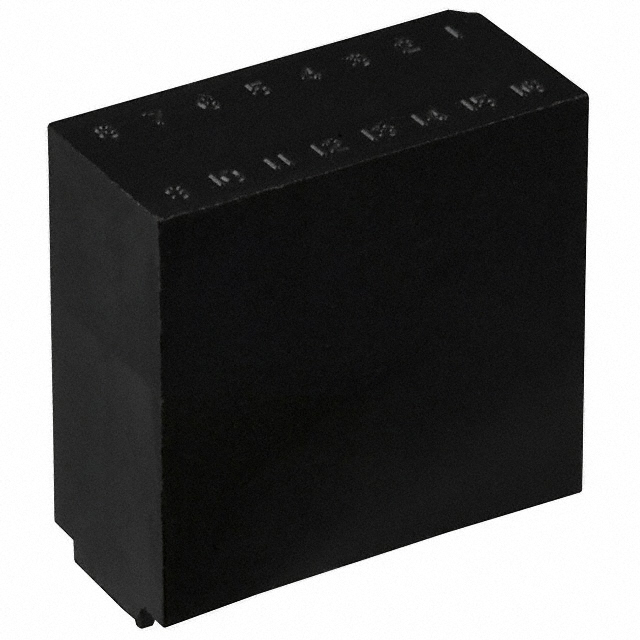

16-650-40

Active

Aries Electronics

.90" COVER 16 PIN

Search across all available documentation for this part.

Active

Aries Electronics

.90" COVER 16 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	16-650-40

Accessory Type	Cap (Cover)
For Use With/Related Products	0600 Series Header
Number of Positions	16

Part	Accessory Type	Number of Positions	For Use With/Related Products	Housing Material	Current Rating (Amps)	Pitch - Post	Pitch - Post	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Post Length	Termination Post Length	Contact Finish - Post	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Features	Number of Positions or Pins (Grid)	Termination	Mounting Type	Contact Finish - Mating
Aries Electronics 16-650-30	Cap (Cover)	16	0600 Series Header
Aries Electronics 16-650-40	Cap (Cover)	16	0600 Series Header
Aries Electronics 16-6501-20				Glass Filled Nylon 4/6 Polyamide (PA46)	1.5 A	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	200 µin	5.08 µm	DIP	0.6 in	15.24 mm	105 ░C	-55 °C	10.41 mm	0.41 in	Tin	Phosphor Bronze	5.08 µm	200 µin	UL94 V-0	Closed Frame	16	Wire Wrap	Through Hole
Aries Electronics 16-6501-30				Glass Filled Nylon 4/6 Polyamide (PA46)	1.5 A	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	200 µin	5.08 µm	DIP	0.6 in	15.24 mm	125 °C	-55 °C	17.52 mm	0.69 in	Tin	Phosphor Bronze	5.08 µm	200 µin	UL94 V-0	Closed Frame	16	Wire Wrap	Through Hole
Aries Electronics 16-6501-21				Glass Filled Nylon 4/6 Polyamide (PA46)	1.5 A	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	10 çin	0.25 çm	DIP	0.6 in	15.24 mm	125 °C	-55 °C	10.41 mm	0.41 in	Gold	Phosphor Bronze	0.25 çm	10 çin	UL94 V-0	Closed Frame	16	Wire Wrap	Through Hole	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	204	$ 2.48

General part information

Connector Cap (Cover) For 0600 Series Header
