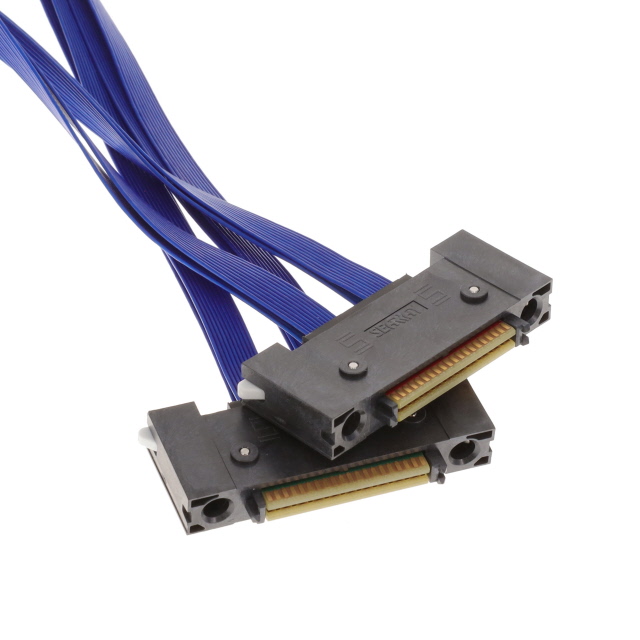

SEAC-020-04-18.0-TU-TU

Active

Samtec Inc.

CBL ASSM HDR M-M 80POS 18"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSM HDR M-M 80POS 18"

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Color	Length	Length	Length	Connector Type	Contact Finish	Number of Rows	Shielding	Cable Termination	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Length	Length [x]	Length [x]
Samtec Inc. SEAC-020-10-06.0-TU-TU-N	0.05 in	1.27 mm	Blue Ribbon	152.4 mm	6 "	0.5 '	Plug to Plug	Gold	10	Unshielded	IDC	0.025 in	0.64 mm
Samtec Inc. SEAC-020-08-06.0-TU-TU	0.05 in	1.27 mm	Blue Ribbon	152.4 mm	6 "	0.5 '	Plug to Plug	Gold	8	Unshielded	IDC	0.025 in	0.64 mm	160
Samtec Inc. SEAC-020-06-06.0-TU-TU-N	0.05 in	1.27 mm	Blue Ribbon	152.4 mm	6 "	0.5 '	Plug to Plug	Gold	6	Unshielded	IDC	0.025 in	0.64 mm	120
Samtec Inc. SEAC-020-08-12.0-TU-TU-N	0.05 in	1.27 mm	Blue Ribbon	304.8 mm			Plug to Plug	Gold	8	Unshielded	IDC	0.025 in	0.64 mm	160	1 ft
Samtec Inc. SEAC-020-04-18.0-TU-TU	0.05 in	1.27 mm	Blue Ribbon				Plug to Plug	Gold		Unshielded	IDC	0.025 in	0.64 mm	80		457.2 mm	1.5 ft
Samtec Inc. SEAC-020-10-06.0-TU-TU	0.05 in	1.27 mm	Blue Ribbon	152.4 mm	6 "	0.5 '	Plug to Plug	Gold	10	Unshielded	IDC	0.025 in	0.64 mm
Samtec Inc. SEAC-020-08-24.0-TU-TU	0.05 in	1.27 mm	Blue Ribbon				Plug to Plug	Gold	8	Unshielded	IDC	0.025 in	0.64 mm	160		609.6 mm	2 '
Samtec Inc. SEAC-020-10-12.0-TU-TU	0.05 in	1.27 mm	Blue Ribbon	304.8 mm			Plug to Plug	Gold	10	Unshielded	IDC	0.025 in	0.64 mm		1 ft
Samtec Inc. SEAC-020-04-06.0-TU-TU-N	0.05 in	1.27 mm	Blue Ribbon	152.4 mm	6 "	0.5 '	Plug to Plug	Gold		Unshielded	IDC	0.025 in	0.64 mm	80
Samtec Inc. SEAC-020-06-12.0-TU-TU	0.05 in	1.27 mm	Blue Ribbon	304.8 mm			Plug to Plug	Gold	6	Unshielded	IDC	0.025 in	0.64 mm	120	1 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)
