135110-01-18.00

Active

Amphenol RF

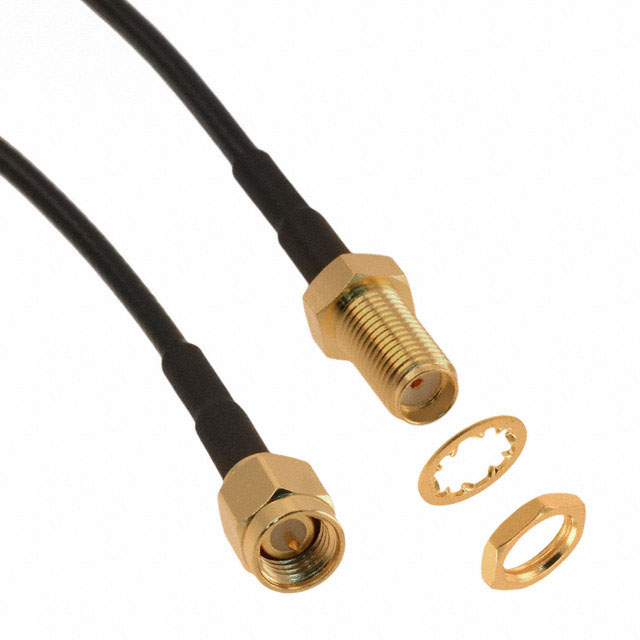

CBL ASSY SMA JACK TO PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

135110-01-18.00

Active

Amphenol RF

CBL ASSY SMA JACK TO PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	135110-01-18.00

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

135110 Series

Part	Color	2nd Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	1st Connector	Length	Length	Style	1st Connector Mounting Feature	Cable Type	Features	Overall Impedance	Cable Impedance	2nd Connector	Frequency - Max [Max]	Length [x]	Length [x]	Length
Amphenol RF 135110-07-36.00	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	91.44 cm	36 in	SMA to SMA	Bulkhead - Front Side Nut	RG-142	Shielded	50 Ohms	50 Ohms	SMA Plug
Amphenol RF 135110-02-M0.75	Black	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	750 mm	29.53 "	SMA to SMA	Bulkhead - Front Side Nut	RG-174	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz
Amphenol RF 135110-01-M0.75	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	750 mm	29.53 "	SMA to SMA	Bulkhead - Front Side Nut	RG-316	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz
Amphenol RF 135110-01-18.00	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack			SMA to SMA	Bulkhead - Front Side Nut	RG-316	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz	457.2 mm	457.2 mm
Amphenol RF 135110-01-24.00	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	609.6 mm	24 "	SMA to SMA	Bulkhead - Front Side Nut	RG-316	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz
Amphenol RF 135110-01-48.00	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	1200 mm	48 in	SMA to SMA	Bulkhead - Front Side Nut	RG-316	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz			4 ft
Amphenol RF 135110-01-M0.50	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	50 cm	19.69 "	SMA to SMA	Bulkhead - Front Side Nut	RG-316	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz
Amphenol RF 135110-04-M0.75	Black	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	750 mm	29.53 "	SMA to SMA	Bulkhead - Front Side Nut	RG-58	Shielded	50 Ohms	50 Ohms	SMA Plug	1 GHz
Amphenol RF 135110-01-M1.00	Copper	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	1 m	39.4 in	SMA to SMA	Bulkhead - Front Side Nut	RG-316	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz			3.3 ft
Amphenol RF 135110-02-36.00	Black	Male	Panel Mount	Free Hanging (In-Line)	Female	SMA Jack	91.44 cm	36 in	SMA to SMA	Bulkhead - Front Side Nut	RG-174	Shielded	50 Ohms	50 Ohms	SMA Plug	3 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 18.97

Description

General part information

135110 Series

Cable Assembly Coaxial SMA to SMA RG-316 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
