Technical Specifications
Parameters and characteristics for this part
| Specification | EC2-3SNU |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Coil Current | 33.3 mA |
| Coil Resistance | 90 Ohms |
| Coil Type | Latching, Single Coil |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold Alloy, Silver Alloy |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 60 W, 125 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.25 VDC |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 1 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.52 | |
| 10 | $ 2.25 | |||
| 35 | $ 2.11 | |||
| 70 | $ 2.04 | |||
| 105 | $ 1.99 | |||
| 280 | $ 1.90 | |||
| 525 | $ 1.84 | |||
| 1015 | $ 1.78 | |||
| 5005 | $ 1.64 | |||
Description
General part information

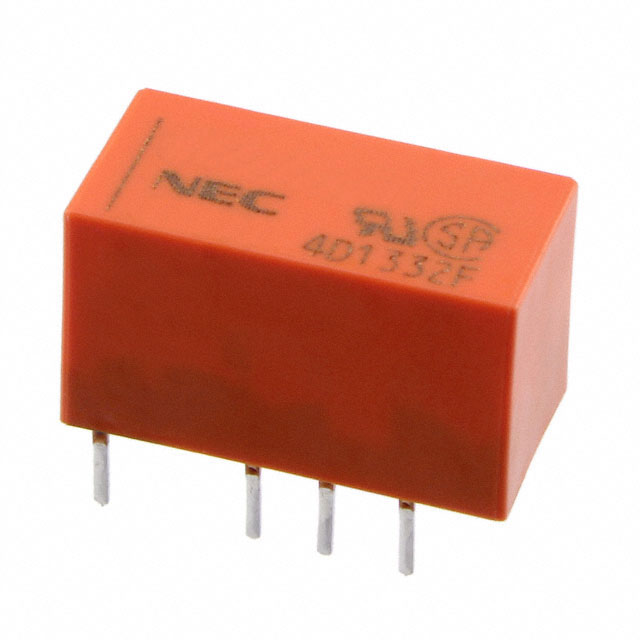

EC2-3S Series
General Purpose Relay DPDT (2 Form C) Through Hole
