LTC1287CCN8

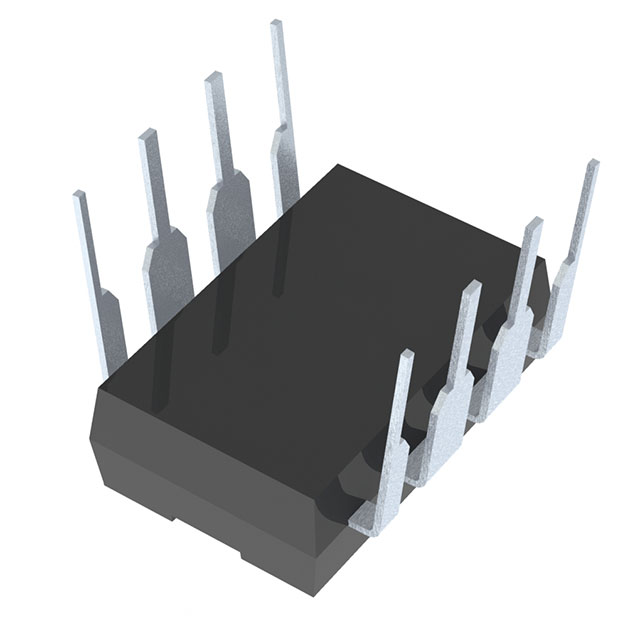

ActiveLTC1287 - 3V SINGLE CHIP 12-BIT DATA ACQUISITION SYSTEM; PACKAGE: PDIP; PINS: 8; TEMPERATURE RANGE: 0°C TO 70°C
Deep-Dive with AI
Search across all available documentation for this part.
LTC1287CCN8
ActiveLTC1287 - 3V SINGLE CHIP 12-BIT DATA ACQUISITION SYSTEM; PACKAGE: PDIP; PINS: 8; TEMPERATURE RANGE: 0°C TO 70°C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LTC1287CCN8 | LTC1287 Series |
|---|---|---|
| Data Interface | Parallel, Serial | Parallel, Serial |
| Mounting Type | Through Hole | Through Hole |
| Number of Channels | 2 | 2 |
| Operating Temperature [Max] | 70 ░C | 70 ░C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 8-DIP | 8-DIP |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | 7.62 mm | 7.62 mm |
| Resolution (Bits) | 12 b | 12 b |
| Sampling Rate (Per Second) | 30k | 30k |
| Supplier Device Package | 8-PDIP | 8-PDIP |
| Type | Data Acquisition System (DAS) | Data Acquisition System (DAS) |
| Voltage - Supply | 3 V | 3 V |
| Voltage Supply Source | Single Supply | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Tube | 1 | $ 45.13 | |
| 10 | $ 33.80 | |||
| Digikey | Tube | 1 | $ 49.80 | |
| 10 | $ 38.40 | |||
| 25 | $ 35.49 | |||
LTC1287 Series
3V Single Chip 12-Bit Data Acquisition System
| Part | Voltage Supply Source | Data Interface | Number of Channels | Sampling Rate (Per Second) | Supplier Device Package | Voltage - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Package / Case | Type | Mounting Type | Resolution (Bits) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc LTC1287BCN8#PBF | Single Supply | Parallel, Serial | 2 | 30k | 8-PDIP | 3 V | 70 ░C | 0 °C | 8-DIP | 0.3 in | 7.62 mm | Data Acquisition System (DAS) | Through Hole | 12 b |
Analog Devices Inc LTC1287CCN8 | Single Supply | Parallel, Serial | 2 | 30k | 8-PDIP | 3 V | 70 ░C | 0 °C | 8-DIP | 0.3 in | 7.62 mm | Data Acquisition System (DAS) | Through Hole | 12 b |
Description
General part information
LTC1287 Series
The LTC1287 is a 3V data acquisition component which contains a serial I/O successive approximation A/D converter. The device specifications are guaranteed at a supply voltage of 2.7V. It uses LTCMOS™switched capacitor technology to perform a 12-bit unipolar, A/D conversion. The differential input has an on-chip sample-and- hold on the (+) input.The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing data to be transmitted and received over three wires. The low voltage operating capability and the low power consumption of this device make it ideally suited for battery applications. Given the ease of use, small package size and the minimum number of interconnects for I/O, the LTC1287 can be used for remote sensing applications.ApplicationsBattery-Powered InstrumentsData LoggerData Acquisition Modules
