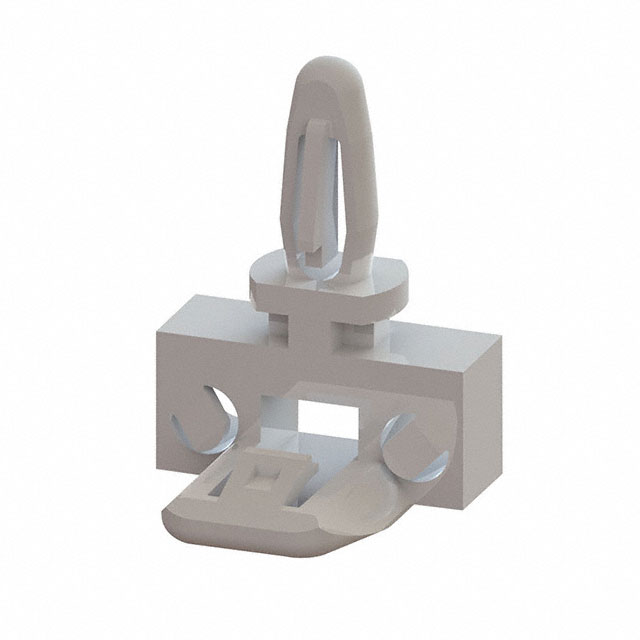

Specification	SMLCBS-8-19

Between Board Height	0.5 in
Features	Removable
Holding Type	Snap Lock
Length - Overall	0.902 in
Material	Nylon
Mounting Type	Snap Lock
Support Hole Diameter	0.156 in
Support Hole Diameter (Alternate)	5/32"
Support Panel Thickness	0.062 in
Support Panel Thickness (Fraction)	1/16"

SMLCBS Series

Part	Material	Length - Overall	Support Hole Diameter	Support Hole Diameter (Alternate)	Features	Mounting Type	Between Board Height	Support Panel Thickness	Support Panel Thickness (Fraction)	Holding Type
Essentra Components SMLCBS-8-19	Nylon	0.902 in	0.156 in	5/32"	Removable	Snap Lock	0.5 in	0.062 in	1/16"	Snap Lock
Essentra Components SMLCBS-5-19	Nylon	0.714 in	0.156 in	5/32"	Removable	Snap Lock	0.313 in	0.062 in	1/16"	Snap Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
