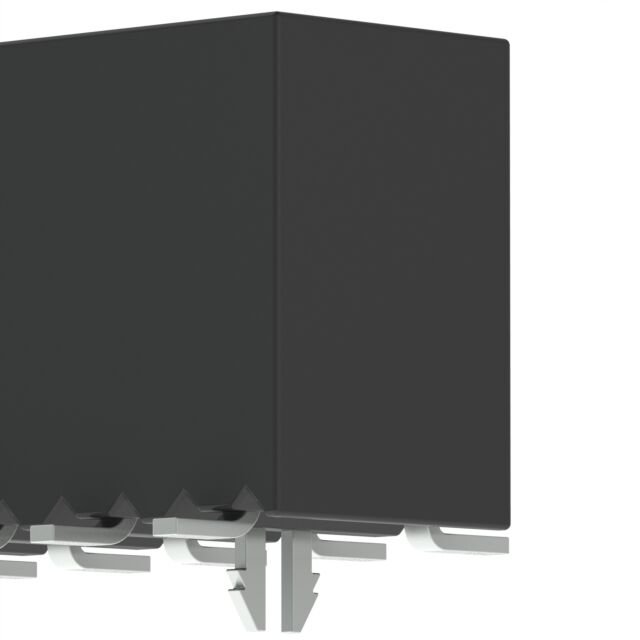

SSM-128-S-DV-LC-P
ActiveSamtec Inc.
CONN RCPT 56POS 0.1 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
SSM-128-S-DV-LC-P
ActiveSamtec Inc.
CONN RCPT 56POS 0.1 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSM-128-S-DV-LC-P |
|---|---|
| Connector Type | Receptacle, Pass Through |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 5.2 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Lock |
| Insulation Color | Black |
| Insulation Height | 7.37 mm |
| Insulation Height | 0.29 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 56 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 572 VDC, 405 VAC |
SSM-128 Series
| Part | Insulation Color | Insulation Height | Insulation Height | Contact Shape | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Material | Number of Positions | Current Rating (Amps) | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Positions Loaded | Contact Type | Termination | Contact Material | Number of Rows | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | Board Lock Pick and Place | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 56 | 5.2 A | Surface Mount | 10 çin | 0.25 çm | Pass Through Receptacle | All | Female Socket | Solder | Phosphor Bronze | 2 | Push-Pull | 2.54 mm | 0.1 in | Board to Board Cable |
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | Pick and Place | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 28 | 5.2 A | Surface Mount | 10 çin | 0.25 çm | Receptacle Bottom Entry | All | Female Socket | Solder | Phosphor Bronze | 1 | Push-Pull | Board to Board Cable | ||
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | Board Guide Pick and Place | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 56 | 5.2 A | Surface Mount | 10 çin | 0.25 çm | Pass Through Receptacle | All | Female Socket | Solder | Phosphor Bronze | 2 | Push-Pull | 2.54 mm | 0.1 in | Board to Board Cable |
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | Board Lock Pick and Place | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 56 | 5.2 A | Surface Mount | 30 Áin | 0.76 Ám | Pass Through Receptacle | All | Female Socket | Solder | Phosphor Bronze | 2 | Push-Pull | 2.54 mm | 0.1 in | Board to Board Cable |
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 28 | 5.2 A | Surface Mount | 30 Áin | 0.76 Ám | Pass Through Receptacle | All | Female Socket | Solder | Phosphor Bronze | 1 | Push-Pull | Board to Board Cable | |||
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 28 | 5.2 A | Surface Mount | 10 çin | 0.25 çm | Pass Through Receptacle | All | Female Socket | Solder | Phosphor Bronze | 1 | Push-Pull | Board to Board Cable | |||
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 56 | 5.2 A | Surface Mount | 30 Áin | 0.76 Ám | Receptacle Bottom Entry | All | Female Socket | Solder | Phosphor Bronze | 2 | Push-Pull | 2.54 mm | 0.1 in | Board to Board Cable | |
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 56 | 5.2 A | Surface Mount | 30 Áin | 0.76 Ám | Pass Through Receptacle | All | Female Socket | Solder | Phosphor Bronze | 2 | Push-Pull | 2.54 mm | 0.1 in | Board to Board Cable | |
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | Board Guide Pick and Place | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 56 | 5.2 A | Surface Mount | 30 Áin | 0.76 Ám | Receptacle Bottom Entry | All | Female Socket | Solder | Phosphor Bronze | 2 | Push-Pull | 2.54 mm | 0.1 in | Board to Board Cable |
Samtec Inc. | Black | 7.37 mm | 0.29 in | Square | Gold | 0.1 in | 2.54 mm | Tin | Board Lock Pick and Place | -55 °C | 125 °C | 405 VAC 572 VDC | Liquid Crystal Polymer (LCP) | 28 | 5.2 A | Surface Mount | 10 çin | 0.25 çm | Receptacle Bottom Entry | All | Female Socket | Solder | Phosphor Bronze | 1 | Push-Pull | Board to Board Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 8 | $ 11.68 | |
Description
General part information
SSM-128 Series
56 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold
