FMX Series

Part	Approval Agency	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Color	Fuse Type	Response Time	Breaking Capacity	Current Rating	Package / Case	Mounting Type	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)
OptiFuse FMX-I-30A	ISO SAE	1.075 in	0.48 in	0.559 in	Pink	Automotive	Fast Blow	1 kA	30 A	Auto Link	Requires Holder	32 V
OptiFuse FMX-LP-I-25A	ISO SAE	0.65 in	0.476 in	0.559 in		Automotive	Fast Blow	1 kA	25 A	Auto Link	Requires Holder	32 V
OptiFuse FMX-LP-60A		0.626 in	0.472 in	0.555 in	Yellow	Automotive	Fast Blow	1 kA	60 A	Auto Link	Requires Holder	58 VDC	125 °C	-40 °C
OptiFuse FMX-LP-50A		0.626 in	0.472 in	0.555 in	Red	Automotive	Fast Blow	1 kA	50 A	Auto Link	Requires Holder	58 VDC	125 °C	-40 °C
OptiFuse FMX-LP-I-20A	ISO SAE	0.65 in	0.476 in	0.559 in	Light Blue	Automotive	Fast Blow	1 kA	20 A	Auto Link	Requires Holder	32 V

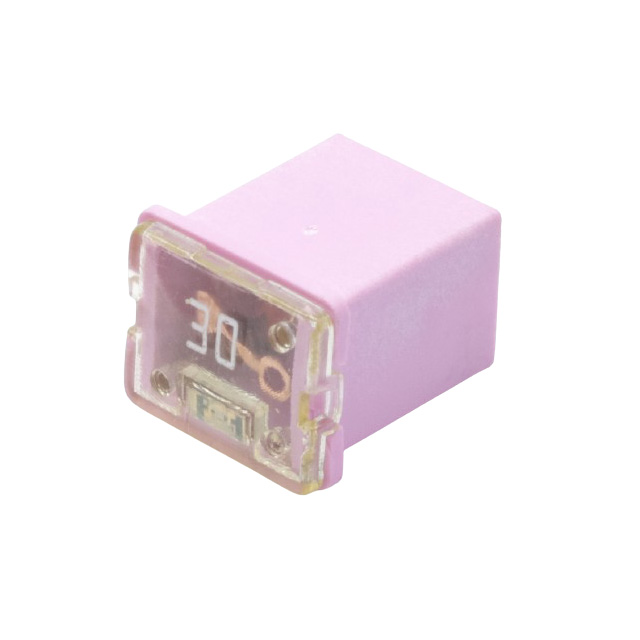

OptiFuse FMX-LP-I-30A	ISO SAE	0.65 in	0.476 in	0.559 in	Pink	Automotive	Fast Blow	1 kA	30 A	Auto Link	Requires Holder	32 V
OptiFuse FMX-LP-40A		0.626 in	0.472 in	0.555 in	Green	Automotive	Fast Blow	1 kA	40 A	Auto Link	Requires Holder	58 VDC	125 °C	-40 °C
OptiFuse FMX-I-60A	ISO SAE	1.075 in	0.48 in	0.559 in	Yellow	Automotive	Fast Blow	1 kA	60 A	Auto Link	Requires Holder	32 V
OptiFuse FMX-30A	ISO SAE	1.075 in	0.48 in	0.559 in	Pink	Automotive	Fast Blow	1 kA	30 A	Auto Link	Requires Holder	32 V
OptiFuse FMX-M-15A		0.24 in	0.59 in	0.42 in	Gray	Automotive	Fast Blow	1 kA	15 A	Auto Link	Requires Holder	58 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
