788155-2

Active

TE Connectivity AMP Connectors

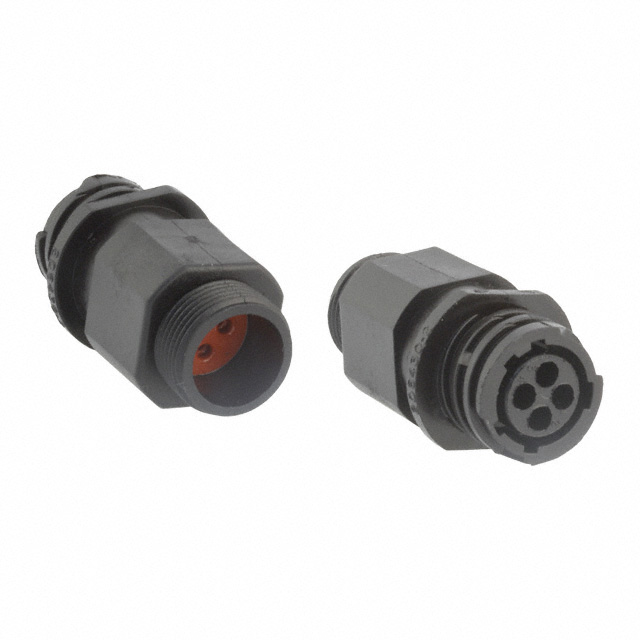

CONN RCPT HSG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	788155-2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	11-4
Shielding	Unshielded
Type	For Female Sockets

CONN RCPT HSG FMALE 4POS INLINE

Part	Contact Shape	Connector Type	Shell Material	Material Flammability Rating	Mounting Type	Ingress Protection	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Housing Color	Orientation	Note	Contact Size	Shell Size - Insert	Features	Contact Type	Type	Shielding
TE Connectivity AMP Connectors 788155-2	Circular	Receptacle Housing	Polyamide (PA66), Nylon 6/6, Glass Filled	UL94 V-0	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Thermoplastic	105 ░C	-55 °C	4	Black	Keyed	Contacts Not Included	16	11-4	Backshell	Crimp	For Female Sockets	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
