IL13-US2-SJT-3100-366
ActiveTE Connectivity Raychem Cable Protection
CRD 18AWG NEMA5-15P - 320C13 12'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL13-US2-SJT-3100-366
ActiveTE Connectivity Raychem Cable Protection
CRD 18AWG NEMA5-15P - 320C13 12'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL13-US2-SJT-3100-366 |
|---|---|
| 1st Connector | NEMA 5-15P |
| Approval Agency Marking | UL, cUL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 10 A |
| Features | Hospital Grade, Locking |
| Length | 3.66 m |
| Length | 12 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.34 | |
| 10 | $ 26.53 | |||
| 25 | $ 24.05 | |||
| 50 | $ 22.37 | |||
| 100 | $ 20.85 | |||
| 250 | $ 19.06 | |||
| 500 | $ 17.86 | |||
Description
General part information
IL13-U Series

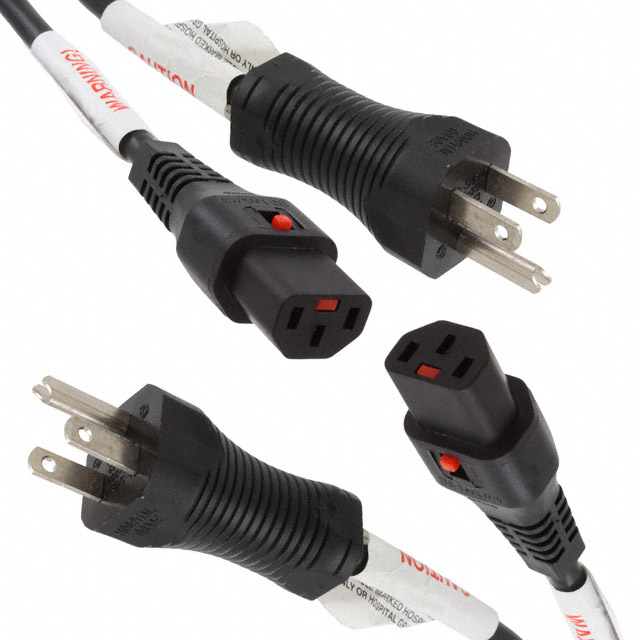

12.00' (3.66m) Power Cord Black NEMA 5-15P To IEC 320-C13 SJT
Documents
Technical documentation and resources
