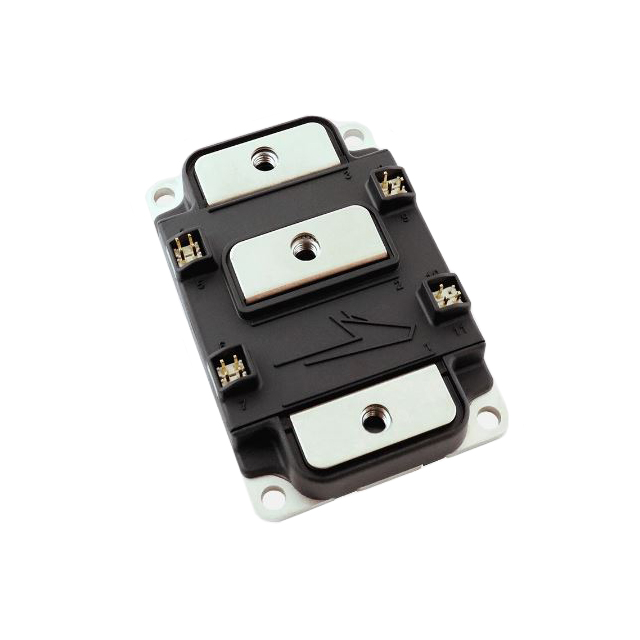

CAB425M12XM3

Active

Wolfspeed

SIC 2N-CH 1200V 450A

Search across all available documentation for this part.

Active

Wolfspeed

SIC 2N-CH 1200V 450A

Technical Specifications

Parameters and characteristics for this part

Specification	CAB425M12XM3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	450 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	1135 nC
Input Capacitance (Ciss) (Max) @ Vds	30.7 nF
Mounting Type	Chassis Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Rds On (Max) @ Id, Vgs	4.2 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

Part	Mounting Type	Configuration	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Technology	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
Wolfspeed CAB425M12XM3	Chassis Mount	2 N-Channel (Half Bridge)	3.6 V	1200 V	1.2 kV	450 A	4.2 mOhm	Silicon Carbide (SiC)	30.7 nF	1135 nC	Module	-40 C	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 1200V (1.2kV) 450A Chassis Mount
