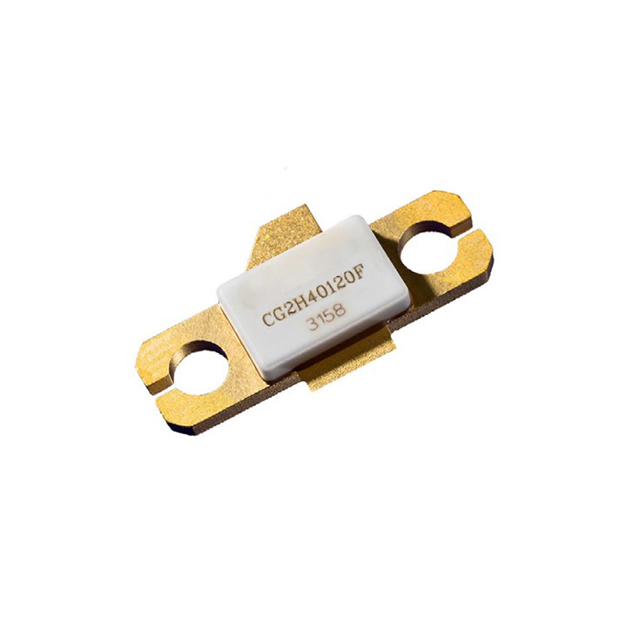

CG2H40120F

Active

MACOM Technology Solutions

RF MOSFET HEMT 28V 440223

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF MOSFET HEMT 28V 440223

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2H40120F	CG2H40120 Series

Current - Test	1 A	1 A
Current Rating (Amps)	28 A	28 A
For Use With/Related Products	-	CG2H40120F
Frequency	2.5 GHz	2.5 GHz
Frequency	-	2.5 GHz
Frequency	-	0 Hz
Gain	20 dBi	20 dBi
Mounting Type	Chassis Mount	Chassis Mount, Surface Mount
Package / Case	440223	440223, 440206
Power - Output	130 W	120 - 130 W
Supplied Contents	-	Board(s)
Supplier Device Package	440223	440223, 440206
Technology	HEMT	HEMT
Type	-	HEMT
Voltage - Rated	84 V	84 - 120 V
Voltage - Test	28 V	28 V

RF MOSFET HEMT 28V 440223

Part	Power - Output	Technology	Voltage - Test	Voltage - Rated	Package / Case	Current - Test	Current Rating (Amps)	Supplier Device Package	Gain	Mounting Type	Frequency	Type	For Use With/Related Products	Supplied Contents	Frequency [Max]	Frequency [Min]
MACOM Technology Solutions CG2H40120F	130 W	HEMT	28 V	84 V	440223	1 A	28 A	440223	20 dBi	Chassis Mount	2.5 GHz
MACOM Technology Solutions CG2H40120F-AMP												HEMT	CG2H40120F	Board(s)	2.5 GHz	0 Hz
MACOM Technology Solutions CG2H40120P	120 W	HEMT	28 V	120 VDC	440206	1 A		440206	20 dBi	Surface Mount	2.5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 28 V 1 A 2.5GHz 20dB 130W 440223
