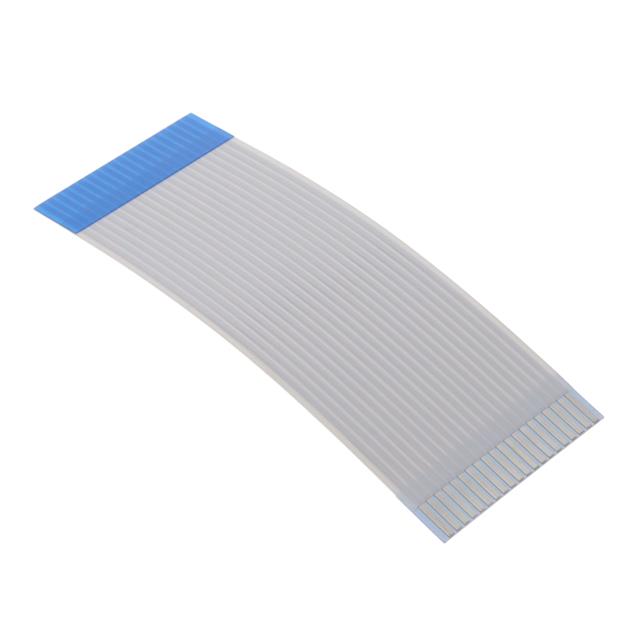

FJ-20-R-02.00-4

Active

Samtec Inc.

CABLE FFC/FPC 20POS 1MM 2"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE FFC/FPC 20POS 1MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	FJ-20-R-02.00-4

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	20
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Pitch [x]	Pitch [x]	Length	Length	Termination Style	Cable Type	Length [x]	Length [x]
Samtec Inc. FJ-20-R-05.00-4	4 mm	0.157 in	20	0.039 in	1 mm	5 in	127 mm	Backers on Both Sides Top on Both Sides	FFC FPC
Samtec Inc. FJ-20-R-04.50-4	4 mm	0.157 in	20	0.039 in	1 mm	4.5 in	114.3 mm	Backers on Both Sides Top on Both Sides	FFC FPC
Samtec Inc. FJ-20-R-45.50-4	4 mm	0.157 in	20	0.039 in	1 mm	45.5 "	1155.7 mm	Backers on Both Sides Top on Both Sides	FFC FPC
Samtec Inc. FJ-20-R-02.00-4	4 mm	0.157 in	20	0.039 in	1 mm	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	FFC FPC
Samtec Inc. FJ-20-R-57.00-4	4 mm	0.157 in	20	0.039 in	1 mm			Backers on Both Sides Top on Both Sides	FFC FPC
Samtec Inc. FJ-20-R-03.00-4	4 mm	0.157 in	20	0.039 in	1 mm	3 in	76.2 mm	Backers on Both Sides Top on Both Sides	FFC FPC
Samtec Inc. FJ-20-R-15.00-4	4 mm	0.157 in	20	0.039 in	1 mm			Backers on Both Sides Top on Both Sides	FFC FPC	15 in	381 mm
Samtec Inc. FJ-20-R-48.00-4	4 mm	0.157 in	20	0.039 in	1 mm			Backers on Both Sides Top on Both Sides	FFC FPC	48 in	1219.2 mm
Samtec Inc. FJ-20-R-03.50-4	4 mm	0.157 in	20	0.039 in	1 mm			Backers on Both Sides Top on Both Sides	FFC FPC	3.5 in	88.9 mm
Samtec Inc. FJ-20-R-20.00-4	4 mm	0.157 in	20	0.039 in	1 mm			Backers on Both Sides Top on Both Sides	FFC FPC	20 in	508 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)
