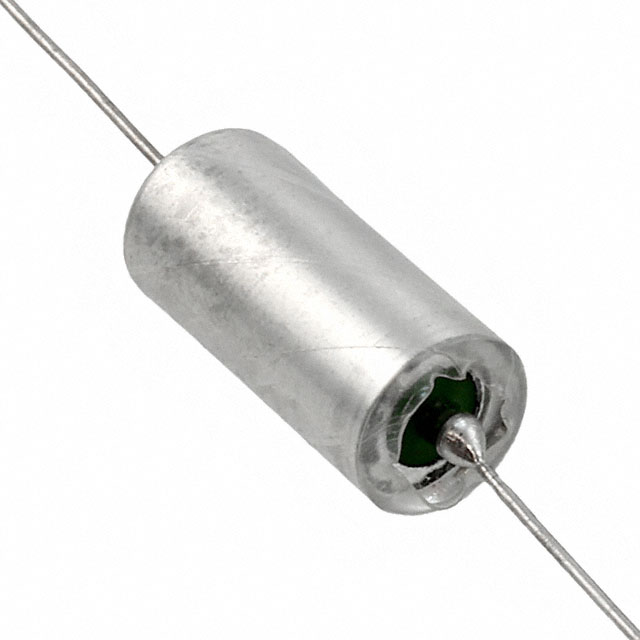

T140D476K050AT

Active

KEMET

CAP TANT SOLID 47UF 50V 10%( 8.92 X 19.96MM) AXIAL 0.6 OHM 125°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP TANT SOLID 47UF 50V 10%( 8.92 X 19.96MM) AXIAL 0.6 OHM 125°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	T140D476K050AT

Capacitance	47 µF
ESR (Equivalent Series Resistance)	600 mOhm
Features	General Purpose
Manufacturer Size Code	D
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	8.92 mm
Size / Dimension [diameter]	0.351 in
Size / Dimension [x]	0.786 "
Size / Dimension [x]	19.96 mm
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	50 VDC

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	ESR (Equivalent Series Resistance)	Mounting Type	Capacitance	Qualification	Manufacturer Size Code	Voltage - Rated	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Type	Tolerance	Package / Case	Features	Size / Dimension [x]	Size / Dimension [x]
KEMET T140D337K015AS	0.351 in	8.92 mm	0.351 "	8.92 mm	400 mOhm	Through Hole	330 µF	MIL-PRF-39003/3	D	15 V	Military	-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose
KEMET T140D107K030AT	0.351 in	8.92 mm	0.351 "	8.92 mm	500 mOhm	Through Hole	100 µF	MIL-PRF-39003/3	D	30 V	Military	-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose
KEMET T140D107K035AS	0.351 in	8.92 mm			500 mOhms	Through Hole	100 µF		D	35 V		-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose	0.786 "	19.96 mm
KEMET T140D108K006AS	0.351 in	8.92 mm			120 mOhm	Through Hole	1000 µF	MIL-PRF-39003/3	D	6 VDC	Military	-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose	0.786 "	19.96 mm
KEMET T140D107K030AS	0.351 in	8.92 mm	0.351 "	8.92 mm	500 mOhm	Through Hole	100 µF	MIL-PRF-39003/3	D	30 V	Military	-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose
KEMET T140D476K050AT	0.351 in	8.92 mm			600 mOhm	Through Hole	47 µF		D	50 VDC		-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose	0.786 "	19.96 mm
KEMET T140D686K035AS	0.351 in	8.92 mm			600 mOhm	Through Hole	68 µF		D	35 V		-55 °C	125 °C	Hermetically Sealed	10 %	Axial	General Purpose	0.786 "	19.96 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF Hermetically Sealed Tantalum Capacitors 50 V Axial 600mOhm
